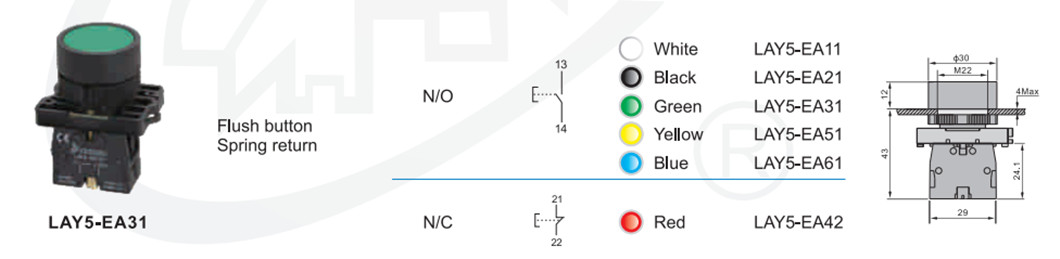

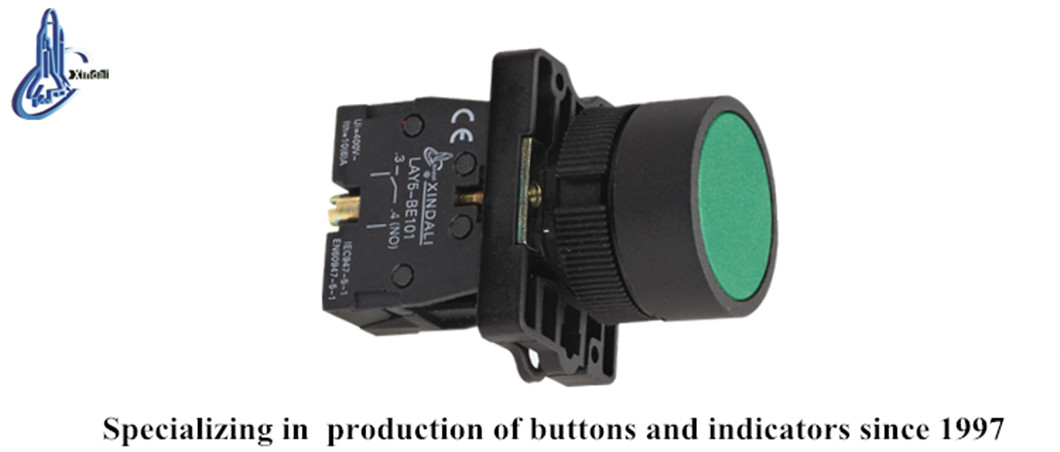

LAY5-EA31 industrial spring return plastic green push button switch
Inquire NowDescription
The LAY5-EA31 is an industrial-grade spring return plastic green push button switch, meticulously designed for controlling AC voltage circuits up to 660V at 50Hz or 60Hz, and DC voltage circuits below 400V. This versatile switch is ideal for signal control and interlocking applications, ensuring reliability and safety in industrial environments. The robust construction features a zinc alloy body paired with high-grade anti-flame plastic, while the contacts are made from a special silver alloy to enhance resistance against electrical erosion. Furthermore, the accompanying signal lamp series operates effectively within electrical appliances at AC voltage up to 380V and DC voltage below 380V, making it perfect for indicating, warning, and emergency signaling. All products comply with GB/T14048.1 and IEC60947-5-1 standards and are CE, ISO9001, ROHS, and UL certified.
Specifications
| Parameter | Button Specifications | Signal Lamp Specifications | |
|---|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A | Contact Resistance | ≤25MinΩ |
| Mechanical Life | 100×10,000 pushbutton | Brightness | 60cd/m² |
| Electrical Life | 500×10,000 pushbutton | Continuous Working Life | 10×10,000h |
Additional Information
- Compliance: All products are certified for safety and quality.
- Applications: Ideal for use in industrial machines, control panels, and emergency signaling systems.
