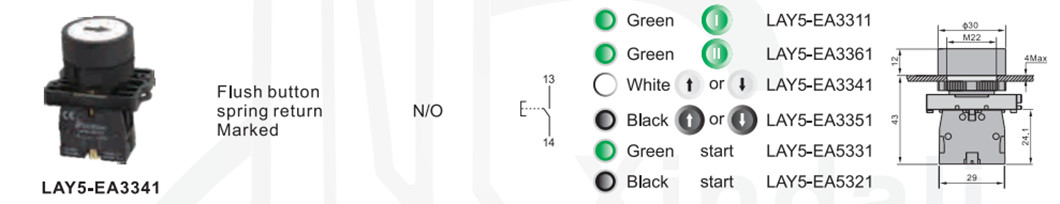

LAY5-EA3341 white flush symbol photos push button switch with marked
Inquire NowDescription

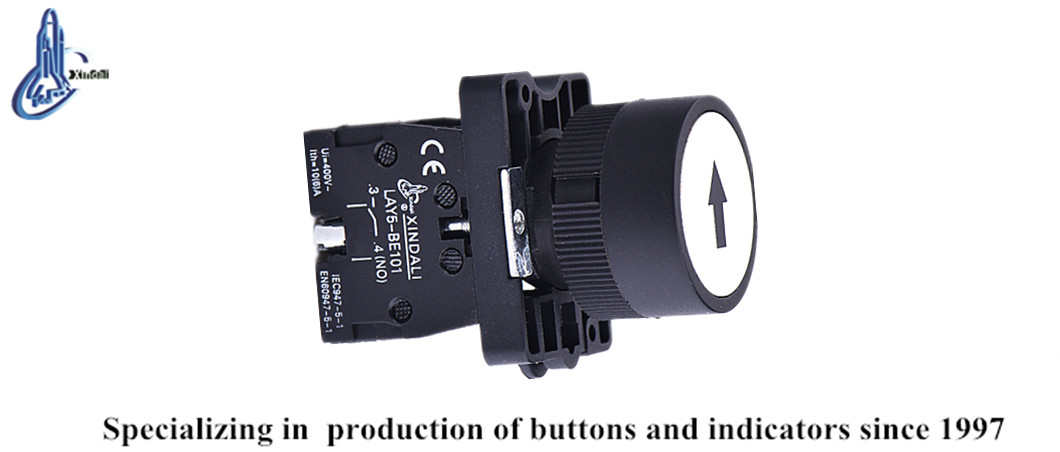

The LAY5-EA3341 is a high-quality white flush symbol photos push button switch designed for efficient control of electrical circuits. This versatile switch is capable of handling alternating current (AC) voltage up to 660V at 50Hz or 60Hz, and direct current (DC) voltage below 400V. Its robust construction features a main body crafted from zinc alloy and high-grade anti-flame plastic, ensuring both durability and safety. The contact mechanism utilizes a special silver alloy that provides excellent resistance to electrical erosion, making it ideal for long-lasting use in various applications.
Additionally, this push button switch is perfect for controlling signal circuits and interlocking purposes. The accompanying signal lamp series operates within electrical appliances at AC voltages up to 380V and DC voltages below 380V, serving as effective indication signals, warning lights, and emergency alerts. All components meet stringent standards including GB/T14048.1 and IEC60947-5-1, and are certified by CE, IOS9001, ROHS, and UL.
Specifications
| Main Technical Parameter | Basic Technical Parameter of Button | Basic Technical Parameter of Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance: ≥50MΩ |
| Conventional Heating Current | 10A | Contact Resistance: ≤25MinΩ |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage: AC 2.5KV/min |
| Contact Resistance | ≤25MinΩ | Voltage Wave: ±20% |
| Mechanical Life | 100×10000 pushbutton; 50×10000 selector switch | Brightness: 60cd/m² |
| Electrical Life | 500×10000 pushbutton; 25×10000 selector switch | Continuous Working Life: 10x10000h |
Additional Information
- CE, IOS9001, ROHS, and UL certified for peace of mind.
- Ideal for a range of applications including industrial, commercial, and residential uses.
