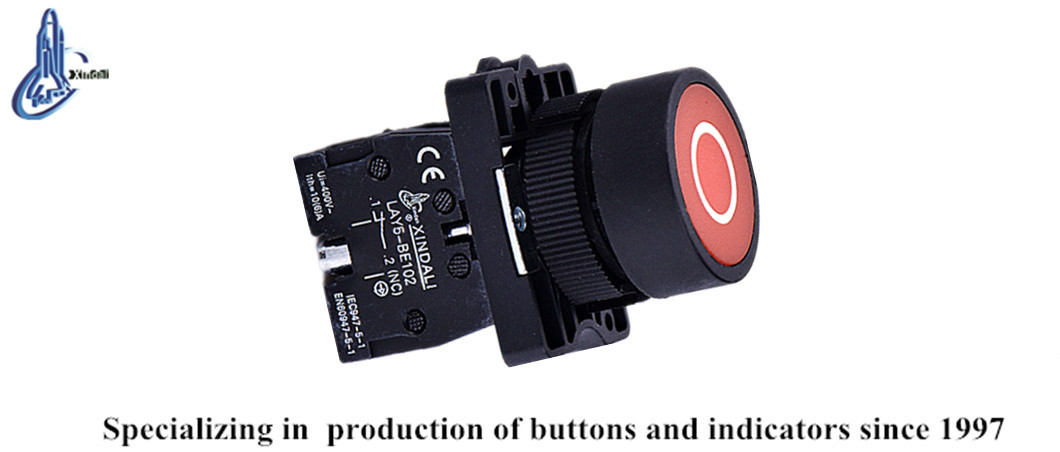

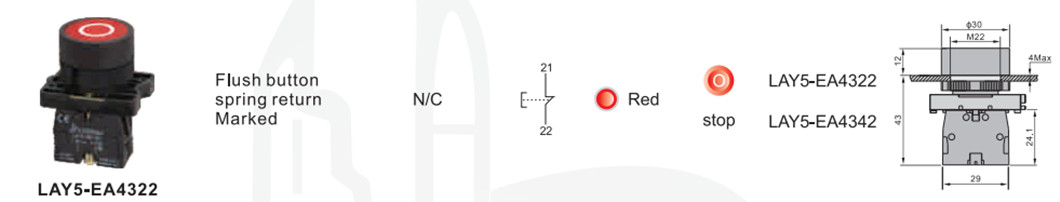

LAY5-EA4322 ring symbol plastic electrical button ignition switch
Inquire NowDescription
The LAY5-EA4322 ring symbol plastic electrical button ignition switch is a robust and highly efficient device designed for controlling electrical circuits. This versatile push button series operates on AC voltage up to 660V (50Hz or 60Hz) and DC voltage below 400V, making it suitable for various applications including signal control and interlocking purposes. Crafted from durable zinc alloy and high-grade anti-flame plastic, it ensures longevity and reliability. The internal contacts are made from a special silver alloy, providing excellent resistance against electrical erosion. Ideal for use in electrical appliances, the accompanying signal lamp series operates on AC voltage up to 380V and is perfect for indicating, warning, or emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 standards and are CE, ISO 9001, ROHS, and UL certified.
Specifications
| Parameter | Value |
|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) |
| Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ |
| Pf Withstand Voltage | AC 2.5KV/min |
| Mechanical Life | 100×10000 pushbutton |
| Electrical Life | 500×10000 pushbutton |
| Continuous Working Life | 10x10000h |
| Brightness | 60cd/m² |
| Voltage Wave | ±20% |
Additional Information
This ignition switch is designed for easy installation and is suitable for a wide range of electrical applications. Ensure to follow all safety guidelines during installation and operation for optimal performance and longevity.
