Description

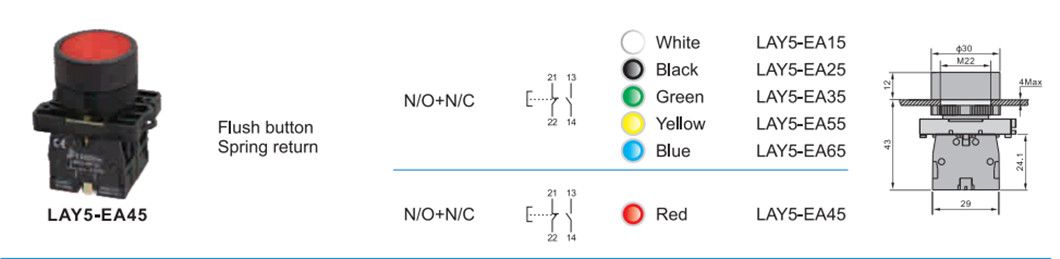

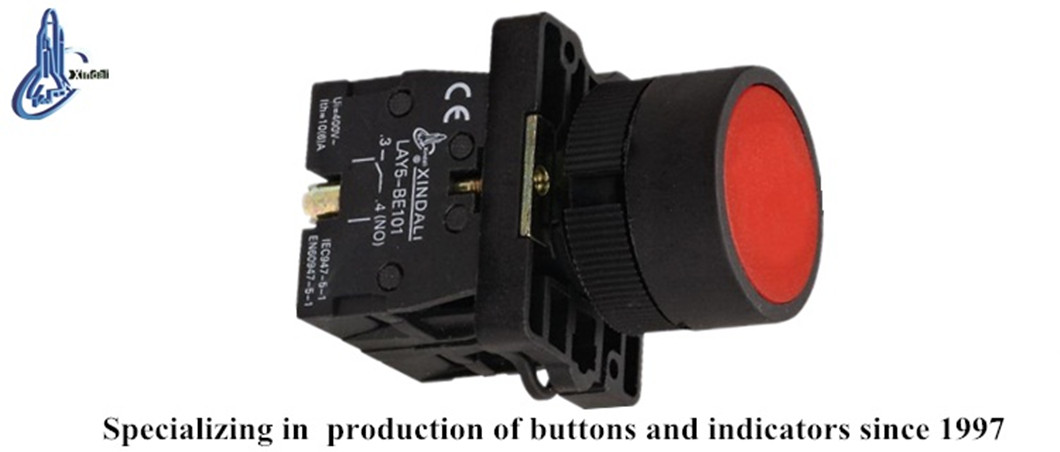

The LAY5-EA45 push button urinal flush spring return pushbutton switch is designed for efficient control in various electrical applications. It operates on AC voltages up to 660V/AC50Hz or 60Hz, and DC voltages below 400V, making it ideal for controlling signals and interlocking systems. With a robust construction utilizing zinc alloy and high-grade anti-flame plastic, the switch ensures durability and safety. The unique silver alloy contacts provide exceptional resistance to electrical erosion, enhancing lifespan and performance. This product is suitable for a wide range of electrical appliances, complying with GB/T14048.1 and IEC60947-5-1 standards, and carries multiple certifications including CE, ISO9001, ROHS, and UL.
Specifications
| Parameter | Value |
|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) |
| Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ |
| Mechanical Life | 100×10000 pushes |
| Electrical Life | 500×10000 pushes |
| Continuous Working Life | 10x10000h |
| Brightness | 60cd/m² |
| Pf withstand voltage | AC 2.5KV/min |
| Voltage Wave | ±20% |
Additional Information
- Ideal for use as indicating signals, warning signals, and emergency signals.
- Compatible with a variety of electrical circuits, ensuring versatility and reliability.
