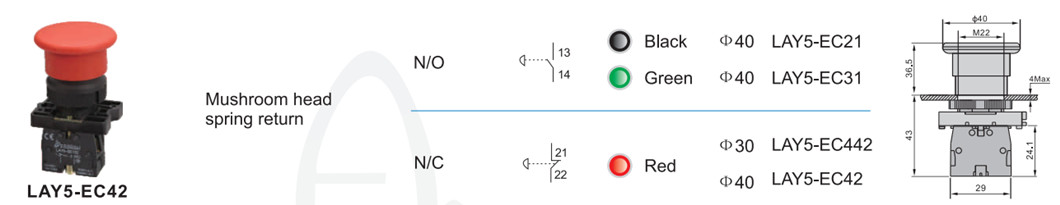

LAY5-EC42 red mushroom head push-pull emergency stop pushbutton switch
Inquire NowDescription
The LAY5-EC42 red mushroom head push-pull emergency stop pushbutton switch is a robust and reliable control device designed for high-performance applications. This push button switch is essential for ensuring safety in electrical circuits, providing an immediate and easy way to halt operations in emergencies. With its bright red mushroom head, it is easily identifiable even in low-light conditions, making it a critical component for industrial and commercial settings.
Engineered with a main body constructed from durable zinc alloy and high-grade anti-flame plastic, this pushbutton switch not only guarantees longevity but also ensures safety. The innovative design features a special silver alloy contact that enhances anti-electrical erosion, providing a dependable operation under various conditions. Suitable for AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V, it serves multiple applications including controlling signals, interlocking, and indicating warnings. Certified by CE, ISO9001, ROHS, and UL, it meets performance standards outlined in GB/T14048.1 and IEC60947-5-1.
Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 pushbutton | Brightness |
| Electrical Life | 500×10000 pushbutton | Continuous Working Life |
Additional Information
- Easy installation and maintenance.
- Suitable for various industrial applications including machinery and automation.
- Long-lasting performance with high mechanical and electrical life ratings.
