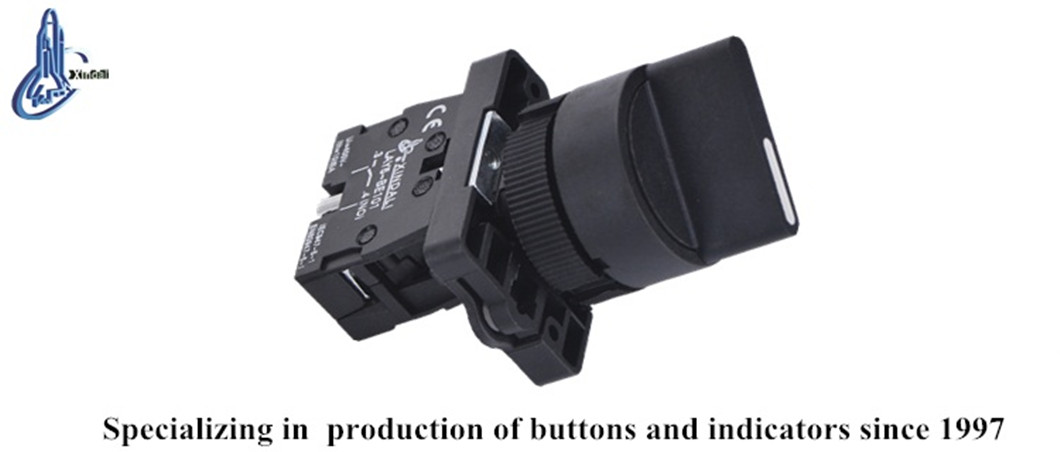

LAY5-ED21 XB2 black push button spring return 2 position or switch
Inquire NowDescription
The LAY5-ED21 XB2 is a versatile black push button switch designed for reliable circuit control in various electrical applications. Capable of handling AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V, this switch serves not only for operational control but also for signaling and interlocking functions. Constructed from durable zinc alloy and high-grade anti-flame plastic, it ensures longevity and safety in use. The innovative contact mechanism utilizes a special silver alloy, offering enhanced resistance to electrical erosion.
This product is particularly suitable for electrical appliances operating at AC voltages up to 380V and DC voltages under 380V, making it ideal for indicating, warning, and emergency signals. Each unit is compliant with GB/T14048.1 and IEC60947-5-1 standards and is CE, ISO9001, ROHS, and UL certified, guaranteeing its quality and reliability.
Specifications
| Main Technical Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance ≥50MΩ |
| Conventional Heating Current | 10A | Contact Resistance ≤25MinΩ |
| Mechanical Life | 100×10,000 Pushbutton | 50×10,000 Selector Switch |
| Electrical Life | 500×10,000 Pushbutton | 25×10,000 Selector Switch |
| Continuous Working Life | 10×10,000h | |
| Brightness | 60cd/m² | |
Additional Information
- Designed for easy installation and operation.
- Ideal for both industrial and commercial applications.
