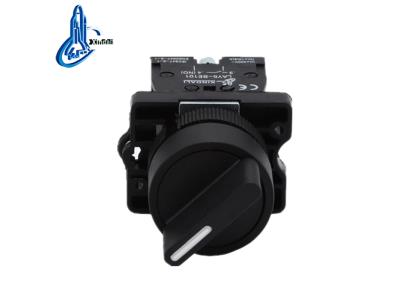

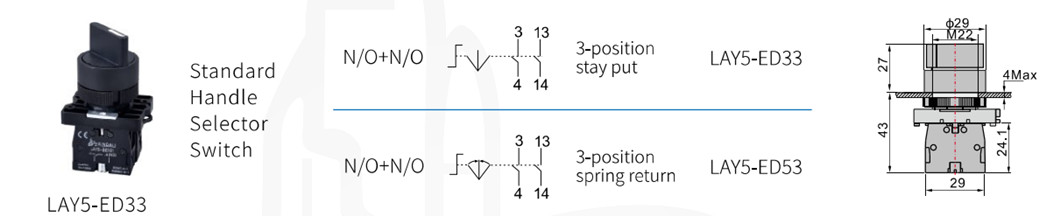

LAY5-ED33 black button handle plastic lay5 or pushbutton switch
Inquire NowDescription
The LAY5-ED33 black button handle is a versatile, high-performance pushbutton switch designed for a variety of applications. Engineered for controlling AC voltage circuits up to 660V at either 50Hz or 60Hz, as well as DC voltages below 400V, this switch is perfect for signal control and interlocking purposes. Its robust construction features a body made from zinc alloy and high-grade anti-flame plastic, ensuring durability and safety. This switch is equipped with contacts made from special silver alloy, providing high resistance to electrical erosion, making it reliable for long-term use.
Additionally, the accompanying signal lamp series operates effectively with AC voltages up to 380V at 50Hz and DC voltages below 380V. This makes the LAY5-ED33 an ideal choice for indicating signals, warning signals, and emergency signals. All products in this series adhere to the stringent standards set by GB/T14048.1 and IEC60947-5-1 and hold certifications including CE, ISO9001, ROHS, and UL, guaranteeing their quality and safety.
Specifications
| Parameter | Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 pushbutton | Brightness |
| Electrical Life | 500×10000 pushbutton | Continuous Working Life |
Additional Information
- Complies with GB/T14048.1 and IEC60947-5-1 standards
- CE, ISO9001, ROHS, and UL certified
