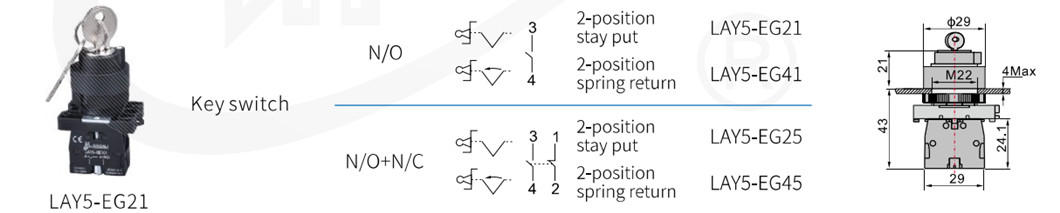

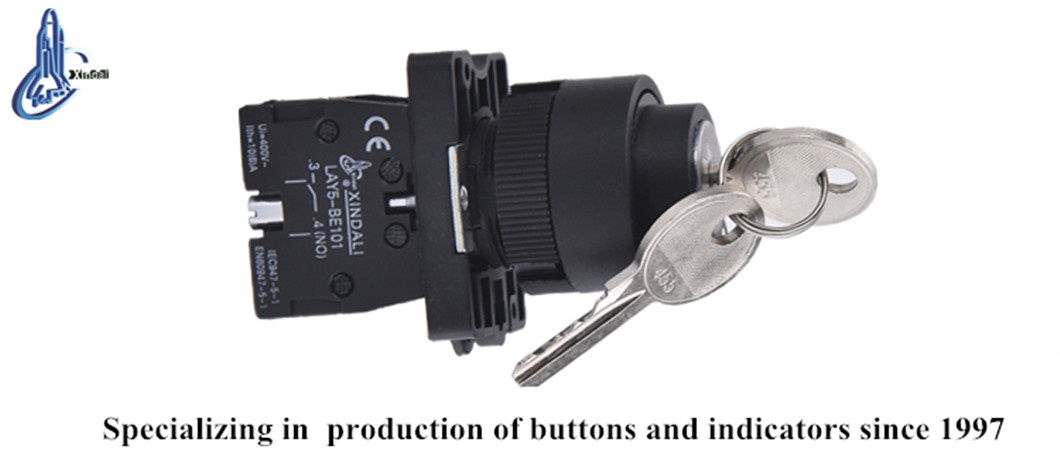

LAY5-EG21 button for elevator key on off 2 position key switch
Inquire NowDescription
The LAY5-EG21 button is a robust and versatile elevator key switch designed for efficient circuit control. This two-position key switch operates in both ‘ON’ and ‘OFF’ states, providing reliable functionality for controlling AC voltages up to 660V (50Hz/60Hz) and DC voltages below 400V. Constructed from zinc alloy and high-grade anti-flame plastic, it features a special silver alloy contact that enhances resistance to electrical erosion, ensuring longevity and performance. The accompanying signal lamp series is ideal for various applications, including indicating, warning, and emergency signals, compatible with electrical circuits of AC voltage up to 380V (50Hz) and DC voltage below 380V. All products meet GB/T14048.1 and IEC60947-5-1 standards and are certified CE, ISO9001, ROHS, and UL.
Specifications
Main Technical Parameter | Basic Technical Parameter of Button | Basic Technical Parameter of Signal Lamp |
---|---|---|
Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
Conventional Heating Current | 10A | Contact Resistance |
Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
Contact Resistance | ≤25MinΩ | Voltage Wave |
Mechanical Life | 100×10000 pushbutton | 50×10000 selector switch |
Electrical Life | 500×10000 pushbutton | 25×10000 selector switch |
Brightness | 60cd/m2 | Continuous Working Life |
Additional Information
- Ideal for elevator control and various signaling applications.
- Durable construction ensures reliable operation and longevity.
- CE, ISO9001, ROHS, and UL certified for safety and quality assurance.
