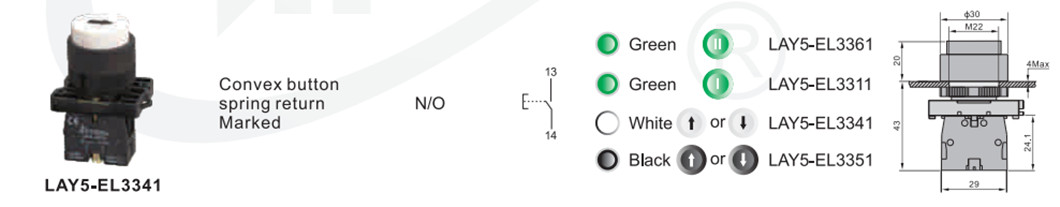

LAY5-EL3341 arrow plastic spring return convex push button with marked
Inquire NowDescription

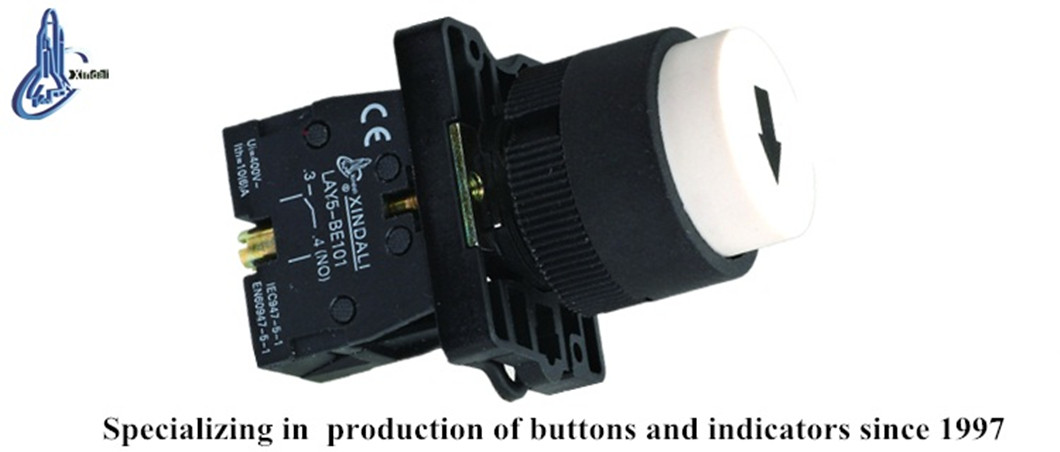

The LAY5-EL3341 is an innovative arrow plastic spring return convex push button designed for precise control in electrical circuits. This push button is adept at managing AC voltages up to 660V (50Hz or 60Hz) and DC voltages below 400V. Its robust design incorporates a zinc alloy body and high-grade anti-flame plastic, ensuring durability and safety. The contact material is crafted from a special silver alloy, providing excellent resistance to electrical erosion.
This versatile push button is ideal for various applications, including signal control and interlocking functions in electrical appliances. With its CE, ISO 9001, ROHS, and UL certifications, the LAY5-EL3341 is a reliable choice for electrical engineers and technicians seeking quality and performance.
Specifications
| Feature | Specification |
|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) |
| Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ |
| Pf Withstand Voltage | AC 2.5KV/min |
| Mechanical Life | 100×10000 pushbutton |
| Electrical Life | 500×10000 pushbutton |
| Brightness | 60cd/m² |
| Continuous Working Life | 10x10000h |
Additional Information
- Used for controlling signals and interlocking purposes.
- Meets GB/T14048.1 and IEC60947-5-1 standards.
- Ideal for indicating signals, warning signals, and emergency signals.
