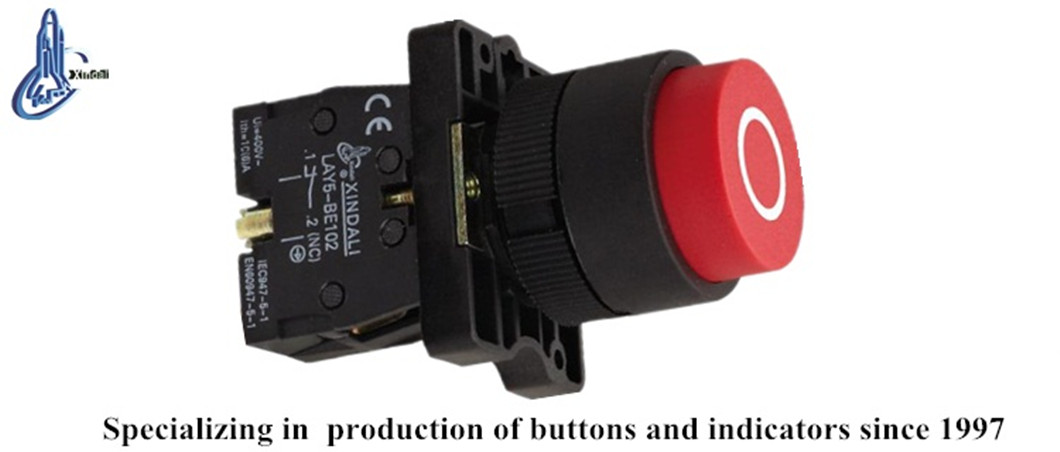

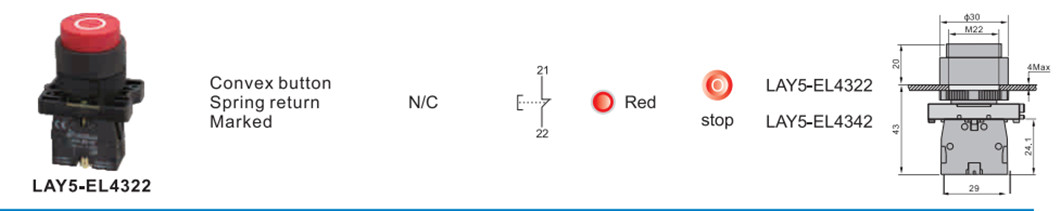

LAY5-EL4322 spring return switch projecting push button with symbol
Inquire NowDescription
The LAY5-EL4322 is a high-performance spring return switch featuring a projecting push button with symbol. Specifically designed for controlling circuits, this versatile switch operates with AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V. Ideal for signal control and interlocking applications, the LAY5-EL4322 showcases a robust construction utilizing a zinc alloy for the main body and high-grade anti-flame plastic. The switch contacts are made from a special silver alloy, ensuring superior resistance to electrical erosion. This product is also compatible with signal lamp applications for circuits up to 380V, making it perfect for indicating, warning, and emergency signals. All components of this switch comply with stringent standards including GB/T14048.1 and IEC60947-5-1, and are CE, ISO9001, ROHS, and UL certified.
Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10,000 | Brightness |
| Electrical Life | 500×10,000 | Continuous Working Life |
Additional Information
- High anti-electrical erosion due to the silver alloy contacts.
- Mechanical life rated at 100,000 operations for push buttons.
- Electrical life rated at 500,000 operations for push buttons.
