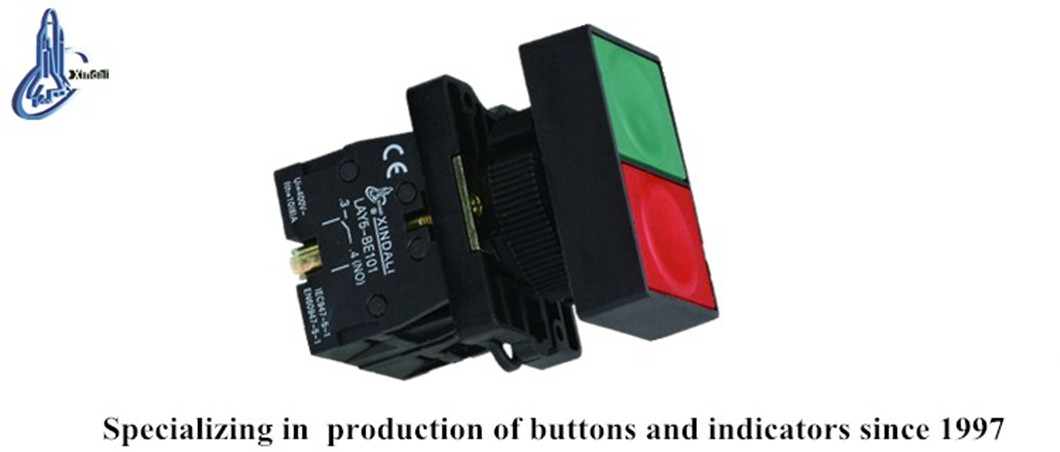

LAY5-EL8325 on off switch symbol picture lay5 double head pushbutton
Inquire NowDescription

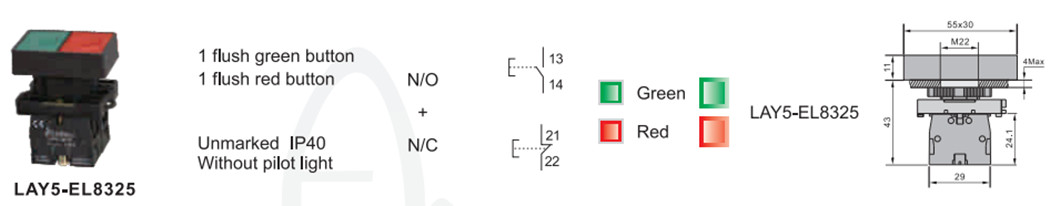

The LAY5-EL8325 is a sophisticated double head pushbutton switch designed for versatile applications in controlling electrical circuits. This robust device supports AC voltage up to 660V (50Hz/60Hz) and DC voltage below 400V, making it ideal for interlocking and signal control purposes. Constructed with a durable zinc alloy body and high-grade anti-flame plastic, it ensures longevity and safety in various environments. The switch features contacts made from a special silver alloy, providing exceptional resistance to electrical erosion. Additionally, the accompanying signal lamp series is perfect for indicating signals and emergency alerts, compatible with electrical circuits of up to 380V (50Hz) and DC voltage below 380V. All components are manufactured to meet stringent standards, including GB/T14048.1 and IEC60947-5-1, and are certified by CE, ISO9001, ROHS, and UL.
Specifications
| Main Technical Parameter | Pushbutton Specifications | Signal Lamp Specifications |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10,000 (pushbutton) | Brightness |
| Electrical Life | 500×10,000 (pushbutton) | Continuous Working Life |
Additional Information
- Mechanical life of pushbutton: 100,000 operations
- Electrical life of pushbutton: 500,000 operations
- Continuous working life: 10,000 hours
