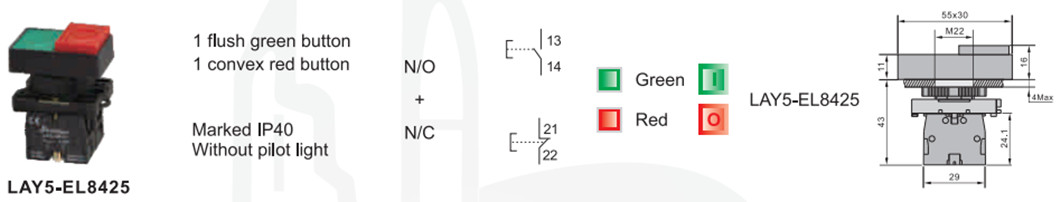

LAY5-EL8425 spring return with mark double-head push button switch
Inquire NowDescription
The LAY5-EL8425 Spring Return Double-Head Push Button Switch is an essential component for controlling electrical circuits. Designed for AC voltage up to 660V and DC voltage below 400V, this switch effectively manages signals and interlocking functions. Its robust construction features a main body made of durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and safety. The switch is equipped with contacts made from special silver alloy, providing high resistance to electrical erosion, which is critical for reliable operation.
This versatile switch is not only designed for push button applications but also supports signal lamp operations for electrical appliances up to 380V. It is perfect for use as indicating signals, warning signals, or emergency signals. With compliance to GB/T14048.1 and IEC60947-5-1 standards, the LAY5-EL8425 is certified with CE, ISO9001, ROHS, and UL, assuring you of its quality and reliability.
Specifications
| Main Technical Parameter | Basic Technical Parameter of Button | Basic Technical Parameter of Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 Pushbutton | 50×10000 Selector Switch |
| Electrical Life | 500×10000 Pushbutton | 25×10000 Selector Switch |
| Continuous Working Life | 10x10000h | Brightness |
Additional Information
- Complies with international standards for safety and performance.
- Ideal for various applications including industrial settings and emergency signal systems.
