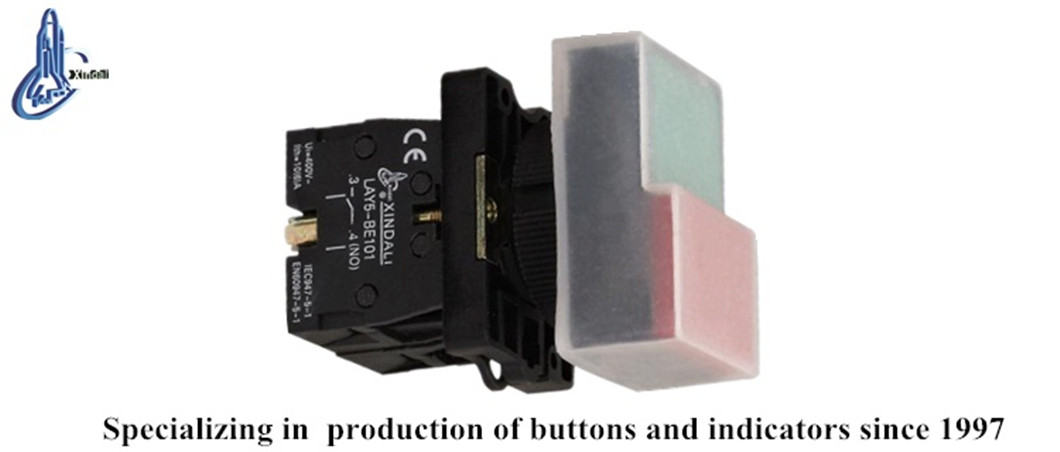

LAY5-EL9425 waterproof cap double head no nc push button switch onoff switch
Inquire NowDescription
The LAY5-EL9425 waterproof cap double head push button switch is a highly versatile and reliable solution for controlling electric circuits. Designed to handle AC voltage up to 660V and DC voltage below 400V, this switch is perfect for a variety of applications including signal control and interlocking purposes. The robust construction features a main body made from zinc alloy and high-grade anti-flame plastic, ensuring safety and durability. The push button series is equipped with special silver alloy contacts that offer excellent resistance to electrical erosion. Additionally, this switch is compliant with various international standards including CE, ISO9001, ROHS, and UL certifications, making it a trustworthy choice for both industrial and emergency signaling applications.
Specifications
| Attribute | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 Pushbutton 50×10000 Selector Switch |
Brightness |
| Electrical Life | 500×10000 Pushbutton 25×10000 Selector Switch |
Continuous Working Life |
Additional Information
- Ideal for emergency signaling and indicating signals.
- Durable design suitable for a wide range of electrical appliances.
