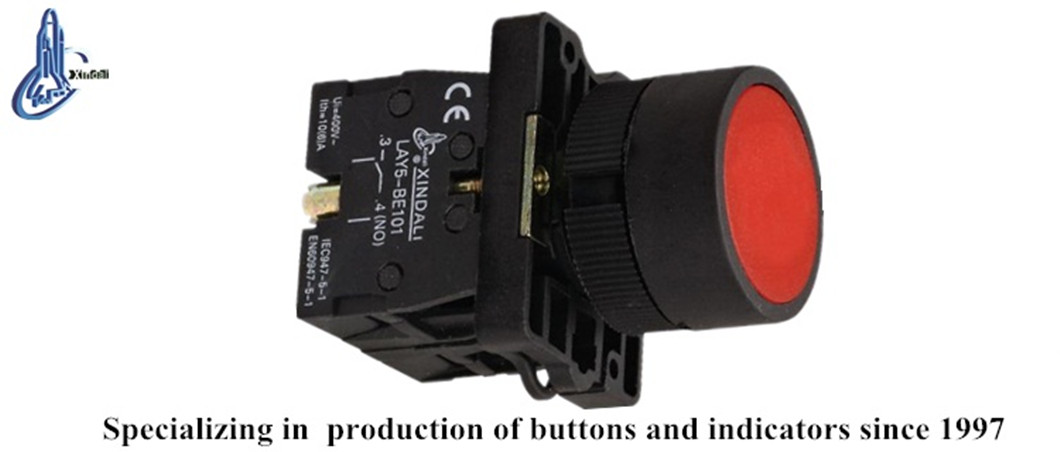

LAY5-EP31 spring return marked push button green button switch
Inquire NowDescription
The LAY5-EP31 Spring Return Marked Push Button Green Button Switch is designed for high-performance control in electrical circuits. This push button switch is engineered to handle AC voltages up to 660V (50Hz/60Hz) and DC voltages below 400V, making it suitable for a wide range of applications including controlling signals and interlocking purposes. The robust main body is crafted from durable zinc alloy and high-grade anti-flame plastic, ensuring longevity and reliability. The contact features a special silver alloy, providing exceptional resistance to electrical erosion.
Moreover, the accompanying signal lamp series is ideal for electrical appliances with AC voltages up to 380V (50Hz) and DC voltages below 380V, serving as indicating, warning, and emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 standards and are certified with CE, ISO9001, ROHS, and UL, ensuring safety and quality compliance.
Specifications
| Parameter | Push Button Specifications | Signal Lamp Specifications |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| ≥50MΩ | Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| ±20% | Mechanical Life | 100×10000 (Push Button) |
| 50×10000 (Selector Switch) | Brightness | 60cd/m² |
| Electrical Life | 500×10000 (Push Button) | 25×10000 (Selector Switch) |
| Continuous Working Life | 10x10000h |
Additional Information
- Complies with international safety standards (CE, ISO9001, ROHS, UL).
- Ideal for a variety of applications including industrial settings.
