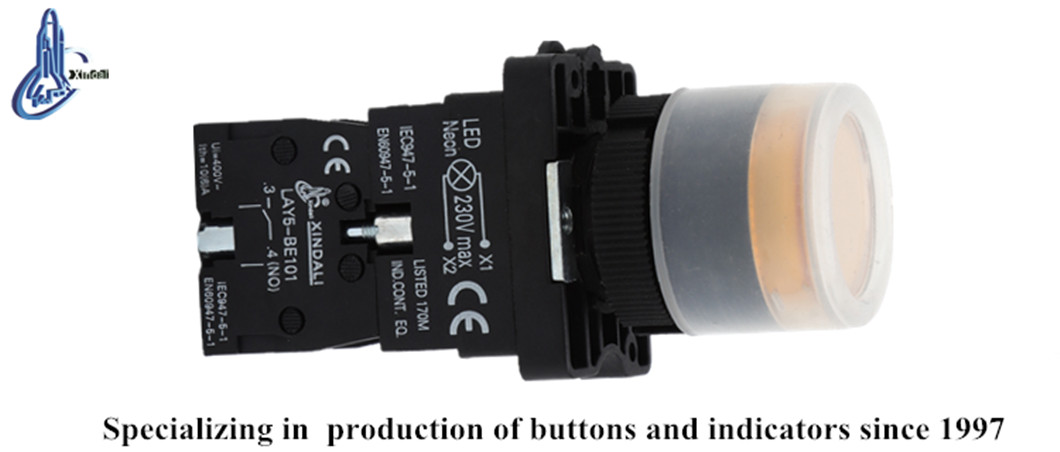

LAY5-EPW3571 electric LED light indicator with button rubber cap switch
Inquire NowDescription
The LAY5-EPW3571 electric LED light indicator combines functionality with durability, featuring a robust button rubber cap switch. Designed for controlling circuits of AC voltage up to 660V/50Hz or 60Hz and DC voltage below 400V, this product serves as an essential component for various signaling and interlocking applications. Crafted from zinc alloy and high-grade anti-flame plastic, the push buttons are engineered for long-lasting performance. The contact utilizes a special silver alloy, ensuring high resistance to electrical erosion. This LED light indicator is suitable for electrical appliances operating at AC voltages up to 380V/50Hz and DC voltages below 380V, making it ideal for indicating, warning, and emergency signals. All products comply with GB/T14048.1 and IEC60947-5-1 standards, and are CE, ISO9001, ROHS, and UL certified.
Specifications
| Parameter | Button Specifications | Signal Lamp Specifications |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 (Pushbutton) | Brightness |
| Electrical Life | 500×10000 (Pushbutton) | Continuous Working Life |
Additional Information
- Brightness: 60cd/m²
- Selector Switch Mechanical Life: 50×10000
- Selector Switch Electrical Life: 25×10000
- Continuous Working Life: 10×10000 hours
