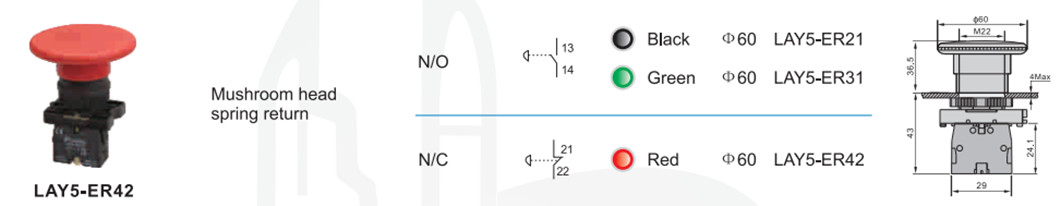

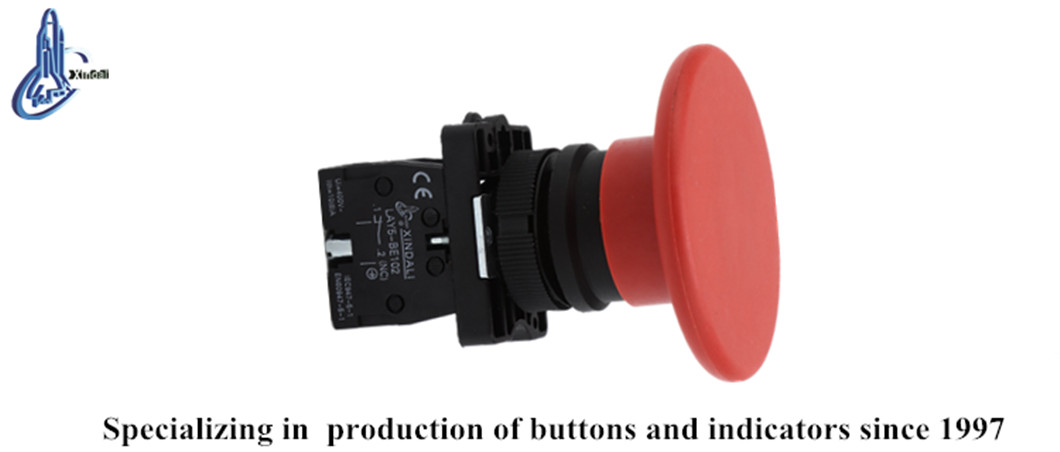

LAY5-ER42 big red mushroom electrical button pushbutton spring return switch

Inquire Now

Description

The LAY5-ER42 big red mushroom electrical pushbutton switch is a robust and reliable solution for controlling circuits in various applications. Designed for both AC and DC voltage management, this spring return switch operates effectively with AC voltage up to 660V/50Hz or 60Hz and DC voltage below 400V. Crafted from a combination of zinc alloy and high-grade anti-flame plastic, this pushbutton ensures durability and safety. The special silver alloy used in its contact enhances its resistance to electrical erosion, making it ideal for interlocking and signaling applications. This product is compliant with international standards such as GB/T14048.1 and IEC60947-5-1, and holds CE, ISO9001, ROHS, and UL certifications.

Specifications

Parameter Value Parameter Value
Rated insulation AC 600V (50Hz/60Hz) Insulation resistance ≥50MΩ
Conventional heating current 10A Contact resistance ≤25MinΩ
Mechanical life 100×10000 (pushbutton) Electrical life 500×10000 (pushbutton)
Brightness 60cd/m² Continuous working life 10x10000h
Pf withstand voltage AC 2.5KV/min Voltage wave ±20%

Additional Information

  • Ideal for use as indicating signals, warning signals, and emergency signals.
  • Designed for high reliability in demanding environments.
