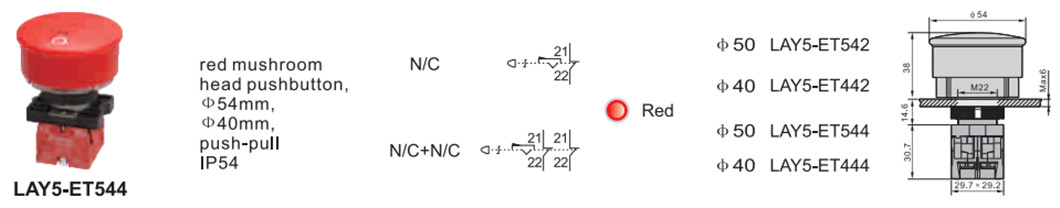

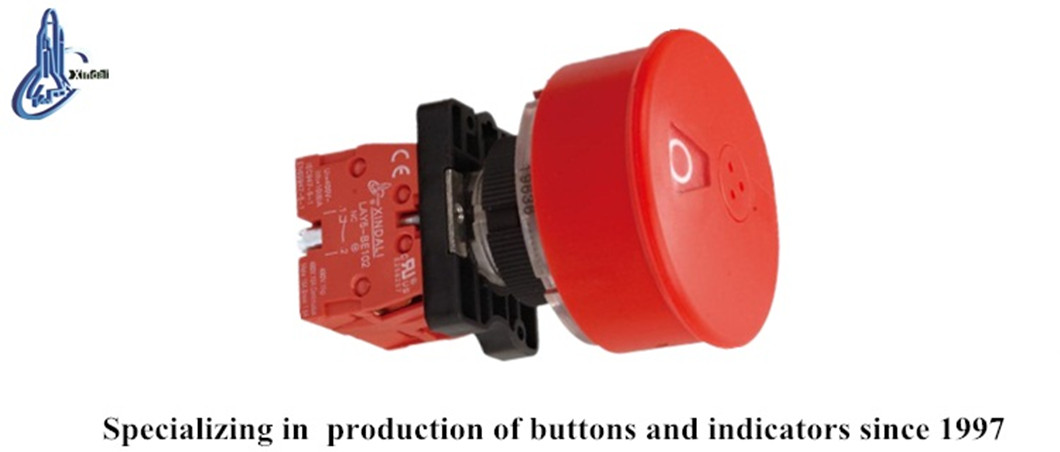

LAY5-ET544 xb2 push pull big mushroom head cock emergency power switch
Inquire NowDescription
The LAY5-ET544 xb2 push-pull big mushroom head cock emergency power switch is an essential component for control circuits, designed for both AC voltage applications up to 660V (50Hz/60Hz) and DC voltage applications below 400V. Featuring a robust design with a body made of zinc alloy and high-grade anti-flame plastic, this switch ensures durability and safety. It is equipped with special silver alloy contacts that provide excellent resistance against electrical erosion. Ideal for signaling and interlocking purposes, the switch meets industry standards and can be utilized in various electrical appliances circuits. It is an excellent choice for emergency signaling, warnings, and operating controls in demanding environments.
Specifications
| Parameter | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | AC 380V |
| Insulation Resistance | ≥50MΩ | — |
| Conventional Heating Current | 10A | — |
| Contact Resistance | ≤25MinΩ | — |
| Withstand Voltage | AC 2.5KV/min | — |
| Mechanical Life | 100×10,000 pushbutton | 50×10,000 selector switch |
| Electrical Life | 500×10,000 pushbutton | 25×10,000 selector switch |
| Continuous Working Life | 10×10,000h | — |
| Brightness | 60cd/m² | — |
Additional Information
This product complies with GB/T14048.1 and IEC60947-5-1 standards and is certified under CE, ISO9001, ROHS, and UL, ensuring reliability and safety in all applications.
