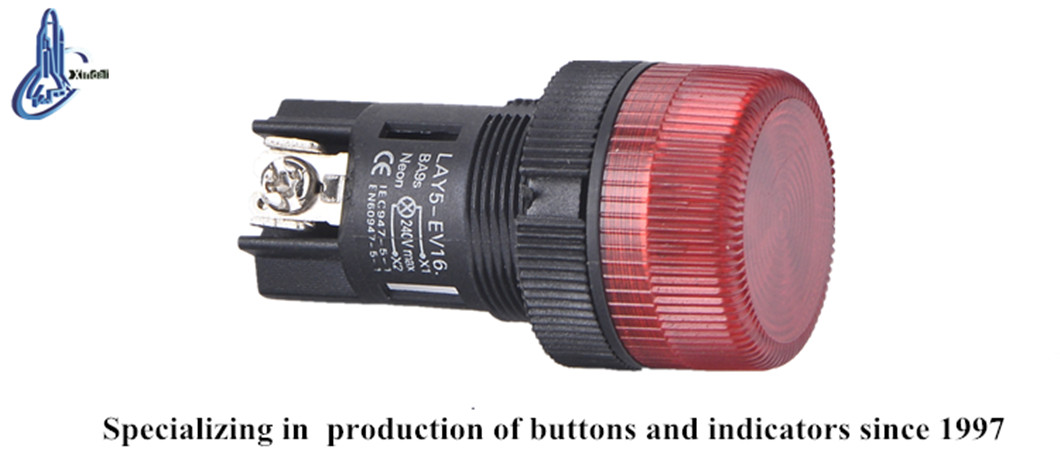

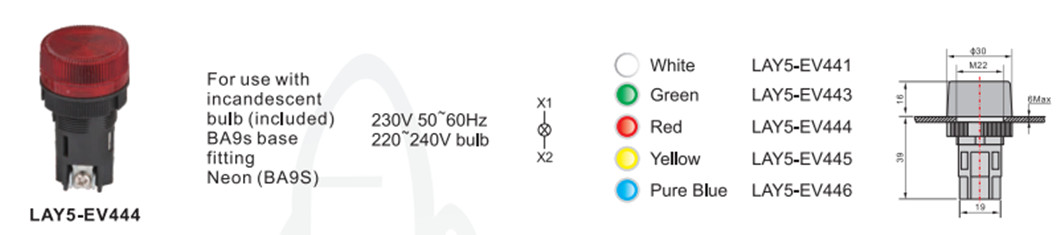

LAY5-EV444 plastic switch pilot light remote control light switch
Inquire NowDescription
The LAY5-EV444 plastic switch pilot light remote control light switch is an essential component for effectively managing your electrical circuits. Designed for both AC and DC applications, this switch can handle AC voltage up to 660V at 50Hz or 60Hz, and DC voltage below 400V. Its robust construction features a main body made from zinc alloy and high-grade anti-flame plastic, ensuring durability and safety. The switch is equipped with a special silver alloy contact that provides exceptional resistance to electrical erosion, making it ideal for controlling signals and interlocking purposes. Additionally, the integrated signal lamp is perfect for use as an indicating, warning, or emergency signal, accommodating electrical appliances with AC voltage up to 380V/50Hz and DC voltage below 380V. All products meet GB/T14048.1 and IEC60947-5-1 standards, with certifications including CE, ISO9001, ROHS, and UL.
Specifications
| Main Technical Parameter | Button Technical Parameters | Signal Lamp Technical Parameters |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance: ≥50MΩ |
| Conventional Heating Current | 10A | Contact Resistance: ≤25MinΩ |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage: AC 2.5KV/min |
| Contact Resistance | ≤25MinΩ | Voltage Wave: ±20% |
| Mechanical Life | 100 x 10,000 pushbutton | 50 x 10,000 selector switch |
| Brightness | 60cd/m2 | |
| Electrical Life | 500 x 10,000 pushbutton | 25 x 10,000 selector switch |
| Continuous Working Life | 10 x 10,000h |
Additional Information
- Certified for safety and performance standards including CE, ISO9001, ROHS, and UL.
