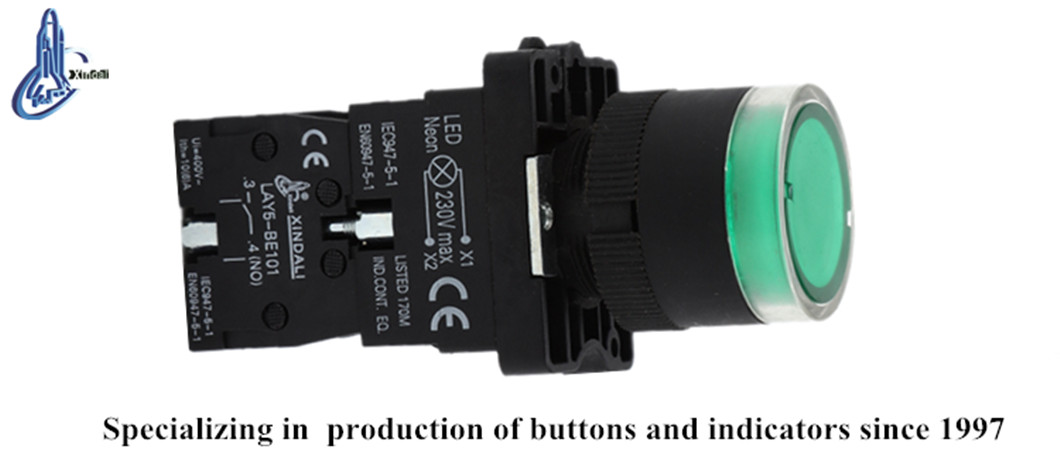

LAY5-EW3361 indicator light ip40 led light push button switch
Inquire NowDescription
The LAY5-EW3361 indicator light is a robust IP40-rated LED push button switch designed for effective circuit control. It is capable of handling AC voltages up to 660V at 50Hz or 60Hz and DC voltages below 400V. This switch is ideal for controlling signals and interlocking functions within electrical systems. Crafted from a durable zinc alloy and high-grade anti-flame plastic, it features contacts made of special silver alloy for enhanced durability and resistance to electrical erosion.
The indicator light is particularly suitable for electrical appliances operating at AC voltages up to 380V at 50Hz and DC voltages below 380V. It can serve as an indication signal, warning signal, or emergency signal, making it a versatile component in various applications. This product meets the standards outlined in GB/T14048.1 and IEC60947-5-1 and is certified by CE, ISO9001, ROHS, and UL, ensuring high quality and safety.

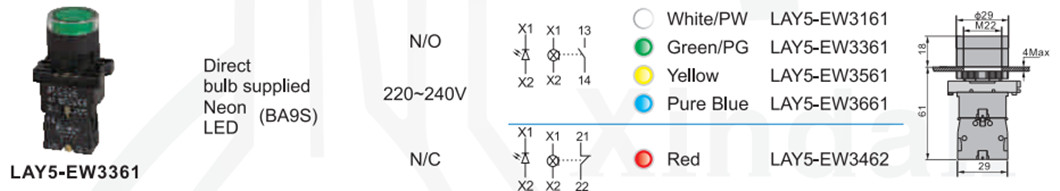

Specifications
| Feature | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10,000 pushbutton | Brightness |
| Electrical Life | 500×10,000 pushbutton | Continuous Working Life |
| 10×10,000h |
Additional Information
- Brightness: 60 cd/m²
- Compliance: CE, ISO9001, ROHS, UL certified
