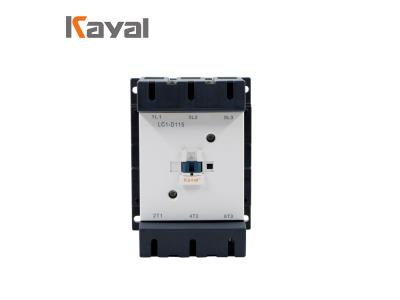

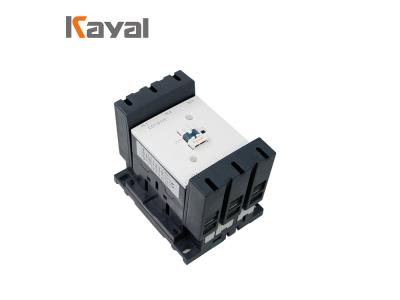

LC1-D115 AC Contactor

Inquire Now

APPLICATION
LC1-D AC Contactor is suitable for using in the circuits up to the rated voltage 660v,AC 50hz or 60hz,rated current up to 95A,for making ,breaking frequently starting &machine-interlocking device etc,it becomes the dalay contactor,mechanical interlocking
contactor,star-delta starter.with the thermal relay,it is combined into the electromagnetic starter.The contactor is produced according to IEC947-2,VDE0660&BS5442

SPECIFICATION

Type		LC1-D09	LC1-D12	LC1-D18	LC1-D25
Rated workingcurrent (A)	AC3	9	12	18	25
Rated workingcurrent (A)	AC4	3.5	5	7.7	8.5
Standardpower ratingsof 3-phase motors 50/60Hz incategory AC-3	220/230V	2.2	3	4	5.5
	380/400V	4	5.5	7.5	11
	415V	4	5.5	9	11
	500V	5.5	7.5	10	15
	660/690V	5.5	7.5	10	15
Rated heat current (A)		20	20	32	40
Electrical life	AC3 (x104)	100	100	100	100
Electrical life	AC4 (x104)	20	20	20	20
Mechanical life (x104)		1000	1000	1000	1000
Number of the contacts	3P+NO
Number of the contacts	3P+NC

Volts	24	42	48	110	220	230	240	380	400
50Hz	440	500	600	50Hz	B5	D5	E5	F5	M5
60Hz	U5	Q5	V5	N5	R5	S5	Y5	60Hz	B6
50/60Hz	E6	F6	M6	–	U6	Q6	–	–	R6

Standard Control Circuit Voltage

LC1-D115 AC Contactor
