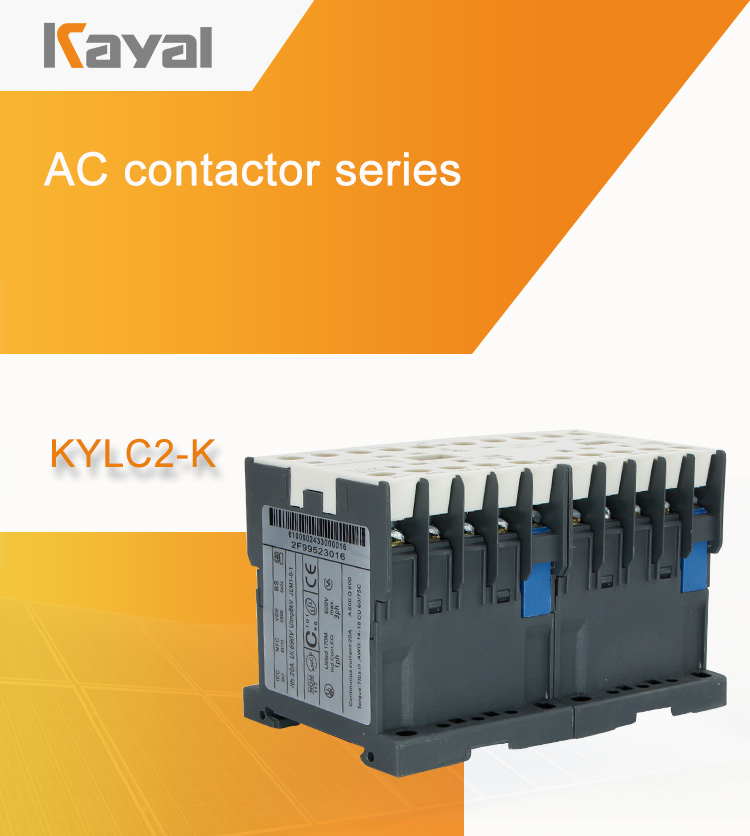

LC2-K AC Contactor

Application

LC1-K series AC contactor is suitable for using in the circuit up to the rate and frequent starting,controling the AC motor.
The addtion of auxiliary contact group to the contactor,combined with the proper thermal relay,can act to protect the circuit
bound to overload.

SPECIFICATIONS

Type	Rated working current A(380v)	AC-3 use group Control power KW				Contact data(1)
Type	Rated working current A(380v)	220V	380/415V	440/500V	600V	Contact data(1)
LP1-K06	6	1.5	2.2	3	3	3P+NC 3P+NO
LP1-K09	9	2.2	4	4	4	3P+NC 3P+NO
LP1-K12	12	3	5	5	5	3P+NC 3P+NO

Specification/Type			LP1-K06	LP1-K09	KP1-K12
Use group under AC-3			6	9	12
Rated working current(Ie)A			5	7.5	10
Conventional thermal current(Ith)A			16	20	20
Rated working voltage(Ue)V			380 660
Rated insullation voltage(Ui)V			690
AC-3	Electrical life(times)		0.5*106
(6Ie Ie)	Operation frequency h-1		1200
AC-4	Electrical life(times)		10*104
(6Ie Ie)	Operation frequency h-1		300
Mecnical life			3*106
Auxiliary contact	Conventional thermal current		6A
	Electrical life (times)	AC-15(360VA)	0.5*10
		DC-13(13W)
Coil specification	Rated control voltage(Us)		AC:12,24,45,110,220,380
			DC:12,24,45,110,220
	Pick-up voltage		AC:0.85~1.1Us DC:0.85~1.1Us
	Releasing voltage		AC:0.1~0.75Us DC:0.2~0.75Us
	Coil power VA	Pick-up	40
		Retain	4
	Consumption		1.2W
	Pick-up time		6~18ms
	Releasing time		5~23ms
	Power factor		Making 0.8 Breaking 0.3
