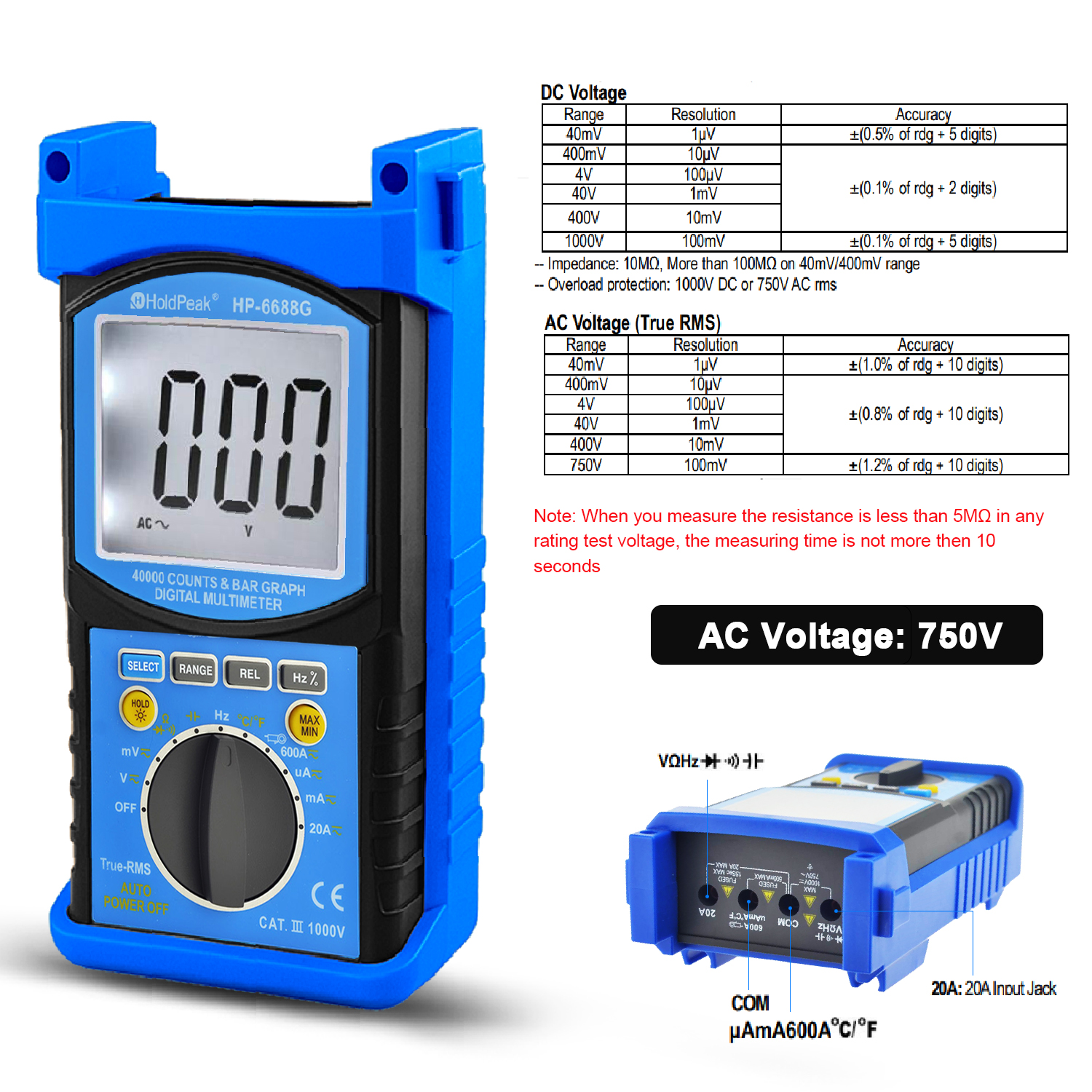

LCD Digital Multimeter Auto-range True RMS Resistance Tester HP-6688G
Inquire NowDescription
The LCD Digital Multimeter Auto-range True RMS Resistance Tester HP-6688G is an essential tool for both professionals and DIY enthusiasts. Designed with precision and versatility in mind, this multimeter offers an extensive range of features, making it suitable for various tasks, from basic electrical measurements to more advanced applications. With its auto-ranging capability, users can effortlessly measure voltage, current, resistance, capacitance, frequency, and temperature with high accuracy. The bright LCD display ensures easy reading in any lighting condition, while the device’s robust construction guarantees durability and reliability.
Specifications
| Attribute | Details |
|---|---|
| Brand Name | HoldPeak |
| Color | Grey + Blue |
| Material | ABS |
| Maximum Display | 40000 |
| Basic Accuracy | 0.1% + 2dgt |
| Range Control | Auto |
| DC Voltage | 40mV to 1000V |
| AC Voltage | 40mV to 750V |
| DC Current | 400μA to 600A |
| AC Current | 400μA to 600A |
| Resistance | 400Ω to 40MΩ |
| Capacitance | 99.99nF to 99.99mF |
| Frequency | 9.999Hz to 9.999MHz |
| Temperature | -20~1000°C / -4~1832°F |
| Duty Cycle | 0.1%~99.9% |
| Diode Test | Yes |
| Continuity Buzzer | Yes |
| Auto Backlight | Yes |
| Safety Level | CAT Ⅲ 1000V |
| Power Supply | 1 * 9V 6F22 Battery (not included) |
| Operating Temperature | 0~50°C (32~122°F), ≤70% relative humidity |
| Storage Temperature | -20~60°C (-4~140°F), ≤80% relative humidity |
| Item Size | Approx. 21.8 * 12.2 * 7.5cm / 8.58 * 4.80 * 2.95in |
| Item Weight | Approx. 729g / 25.71oz (without battery) |
| Package Size | Approx. 26.5 * 23.5 * 7.9cm / 10.43 * 9.25 * 3.11in |
| Package Weight | Approx. 1185g / 41.80oz |
Additional Information
- True RMS for accurate readings.
- Auto power-off feature to conserve battery life.
- Backlight for easy visibility in low-light environments.
- Includes features for diode tests and continuity checking.
