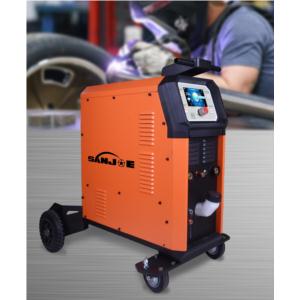

LCD TIG-200L AC/DC welding machine

Inquire Now

LCD TIG-200L AC/DC welding machine

3.5 inch LCD screen display TIG-200L AC/DC welding machine

Features:

1, Using 3.5 inch colored LCD screen, patented control system.

2, 9 job memories

3, Up to 9 language versions

4, IGBT inverter technology

5, TIG DC and TIG AC mode offering high-quality welding effects for many different kinds of materials

6, Full TIG welding circle adjustable, Pre-Flow, Start current, Up-Slope, Peak current, Base current, Down-Slope, Crater, Post-Flow.

7, There are 6 waveforms on AC mode for choice

8, On AC mode, can adjust AC frequency and AC balance.

Accessories

1. 1 pcs of WP26 TIG torch (4m);
2. 1 pcs of earth clamp(2m);
3. 2 pcs of φ50 Europe plug;
4. 1 pcs of φ5 Allen

TECHNICAL PARAMETERS UNIT TIG-200G
Rated input voltage V AC 220V±15% 50/60
Rated input power KVA 7.2
Output current range A

TIG:10-200
MMA:30-160
Duty cycle % 40
Hot Start current A
Arcing method A high frequency
Welding plate thickness MM 0.5-5.0
Packing dimensions MM 520x290x460
Machine dimension MM 460x220x375
Gross weight KG 19
Net weight KG 15.1
