Description
LDA Street Lighting Connector is designed for reliable connections in low-voltage street lighting systems. Crafted from high-strength aluminium alloy, this connector ensures durability and outstanding mechanical performance. Its integrated insulation provides superior waterproof capabilities, enhancing stability and functionality in various weather conditions. The LDA street lighting connector is easy to install and meets industry standards such as IEC 61238-1:2003 and ANSI C119.1-2011, ensuring a safe and efficient connection for your street lighting needs.
Specifications
| Attribute | Details |
|---|---|
| Material | Aluminium Alloy |
| Application | Low Voltage Street Lighting Systems |
| Features | Waterproof with integrated insulation, easy installation, compliant with IEC and ANSI standards |

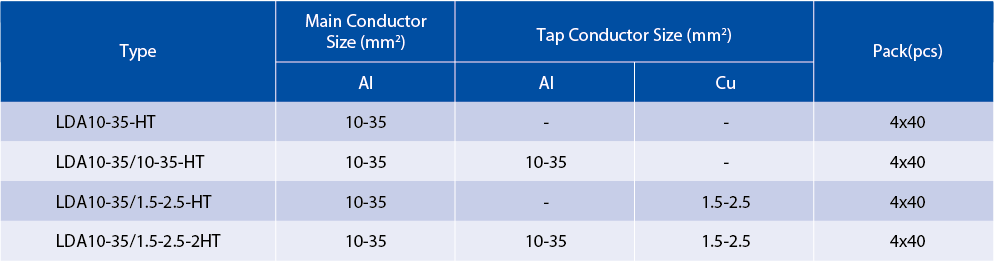

| Usage Notes | LDA10-35/10-35-HT for ground or T branch connections; LDA10-35/1.5-2.5-2HT for crossroads or T-junctions |
Additional Information
Note: Ensure to select the appropriate connector variant based on your specific installation requirements.
