LDE32E/E3
Inquire NowDescription

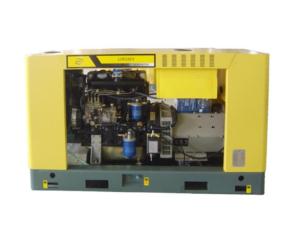

The LDE32E/E3 is a robust and efficient power generator designed to meet various energy needs. With a rated output power of 30 kVA, this generator is perfect for both commercial and residential applications. It operates on a rated voltage of 230/400V and is equipped with a single-phase as well as a three-phase option, ensuring versatility in usage. The brushless rotating excitation system (AVR) provides stable power output, making it reliable for sensitive electronic equipment.
Powered by a four-cylinder in-line engine model QC4105D, the LDE32E/E3 boasts an impressive engine output power of 35 kW at 1500 rpm and 42 kW at 1800 rpm, making it suitable for demanding tasks. With a noise level of 95 dB(A) at 7 meters, it operates efficiently while minimizing disturbance. The generator’s durable design includes a fuel capacity of 45 liters, allowing for extended operation with a fuel consumption rate of only 240 g/KW.h.
Specifications
| Attribute | Details |
|---|---|
| Model | LDE32E/E3 |
| Rated Output Power | 30 kVA |
| Rated Voltage | 230/400V |
| Rated Current | 130A (54.3A) |
| Rated Frequency | 50/60 Hz |
| Power Factor | 1 (0.8) |
| Phase Number | Single phase / Three phase |
| Excitation System | Brushless, rotating excitation (AVR) |
| Engine Model | QC4105D |
| Engine Type | Four-cylinder in-line |
| Noise Level | 95 dB(A) @ 7m |
| Bore × Stroke | 105 × 118 mm |
| Displacement | 4.087 L |
| Engine Output Power | 35 kW / 1500 rpm, 42 kW / 1800 rpm |
| Fuel | Diesel oil |
| Fuel Capacity | 45 L |
| Fuel Consumption | 240 g/KW.h |
| Overall Dimension | 1850 × 800 × 1040 mm |
| Dry Weight | 700 kg |
