Description

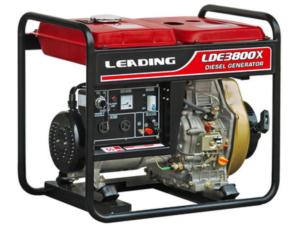

The LDE3800X is a powerful and efficient diesel generator designed for reliable performance in various applications. With a robust single-cylinder, 4-stroke engine, this generator is capable of delivering a rated output power of 3.0 kW at 3000 rpm, making it ideal for residential and commercial power needs. Its open-frame design ensures durability and easy access for maintenance. The LDE3800X operates effectively with light diesel oil and features a recoil starter for convenient operation. With a noise level of 72 Db(A) at 7 meters, it maintains a balance between power and quiet operation.
Specifications
| Attribute | Details |
|---|---|
| Rated Frequency | 50/60 Hz |
| Rated Voltage | 230/240/120 V |
| Rated Current | 13.0/14.1/28.3 A |
| Rated Output Power | 3.0/3.3 kW |
| Rated Rotation Speed | 3000/3600 rpm |
| DC Output | 12 V/8.3 A |
| Power Factor | 1.0 |
| Phase Number | Single phase |
| Noise Level | 72 Db(A) @ 7m |
| Dimensions (L×W×H) | 685×510×555 mm (26.96×20.08×21.85 in) |
| Dry Weight | 64 kg (141 lbs) |
| Structure Type | Open-frame type |
| Coupling Mode | Rigid coupling by rotor drive shaft |
| Engine Model | LD178FG |
| Engine Type | Single-cylinder, 4-stroke, air-cooled, direct injection, diesel engine |
| Displacement | 308 ml (18.79 cu.in) |
| Compression Ratio | 20:1 |
| Starting System | Recoil starter |
| Rotation Direction | Clockwise (view from flywheel) |
| Fuel | 0# (summer), -10# (winter) light diesel oil |
| Lube | SAE10W30 (above CC grade) |
