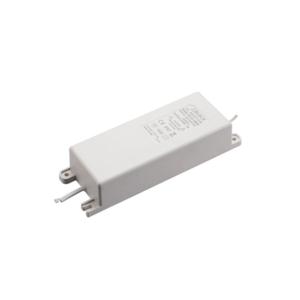

LED Driver LED Power Supply
Inquire NowDescription
The LED Driver LED Power Supply is a reliable and efficient solution for powering your LED lighting systems. Designed with versatility in mind, the YSC50 model boasts a maximum power output of 60W, making it suitable for a wide range of applications. With a robust input voltage range of 100-240VAC and an adjustable output voltage of 5-48V, this power supply can meet the demands of various LED configurations. It incorporates advanced protection features including short circuit, over current, and over voltage protection, ensuring the safety and longevity of your equipment.
This power supply operates efficiently with a low no-load power consumption of less than 0.15W, achieving Energy Efficiency Level VI compliance. It’s built to perform well under various conditions, working efficiently in temperatures ranging from -20°C to 50°C and in humid environments up to 90% RH. The compact design, measuring 150*56*35mm and weighing only 453g, makes it easy to integrate into tight spaces.
Specifications
| Attribute | Details |
|---|---|
| Model | YSC50 |
| Power | 60W max. |
| Input | 100-240VAC 50/60Hz |
| Output Voltage | 5-48V |
| Output Current | 0.1-5A |
| Input Current | 1.5A max. |
| Inrush Current | 65 Amps max. at 230VAC/50Hz, full load |
| Leakage Current | 0.25mA Max. at 264VAC input |
| Energy Efficiency Level VI | CoC 5 / DoE 6 / CEC VI |
| No Load Power Consumption | <0.15W |
| Protections | Short Circuit / Over Current / Over Voltage |
| Working Temperature | -20°C to 50°C |
| Working Humidity | 5%-90% RH non-condensing |
| Storage Temperature and Humidity | -40°C to +70°C, 5% to 95% RH |
| Input Plug | EU, US, UK, AU etc., according to customer’s choice |
| Certificates and Approvals | UL, GS, CE, EMC, SAA, FCC, CB, PSE, CCC, RoHS, REACH |
| MTBF | 100,000 hours minimum at full load at 25°C ambient |
| Life | 3-5 years alternative |
| Dimension | 150*56*35mm |
| Weight | 453g |
| Packing | 20PCS/CTN, 40*30*20cm |
Additional Information
- Short Circuit Protection (SCP): Protection to Zero Voltage
- Over Voltage Protection (OVP): ≤Vout*150%
- Over Current Protection (OCP): 110%-180%
