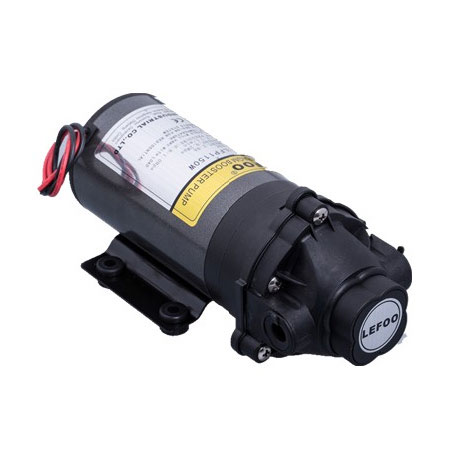

LFP1050-1100S Self-Priming Booster Pump
Inquire NowDescription
The LFP1050-1100S Self-Priming Booster Pump is designed for optimal performance in boosting water pressure for various applications. This reliable and efficient pump series includes models LFP1050S, LFP1075S, and LFP1100S, catering to a variety of needs. With a robust 24VDC voltage and a general 3/8″NPT connection, this booster pump ensures seamless integration into existing systems and provides excellent water flow.
Engineered to handle inlet water pressures of 0MPa and operating pressures up to 0.5MPa, the LFP1050-1100S series is perfect for both residential and commercial usage. Its self-priming feature allows for easy setup and operation, making it an ideal choice for users seeking reliability and simplicity. This pump series delivers impressive flow rates ranging from 650mL/min to 1050mL/min, ensuring you have the performance you need when you need it.
Specifications
| Attribute | LFP1050S | LFP1075S | LFP1100S |
|---|---|---|---|
| Model | LFP1050S | LFP1075S | LFP1100S |
| Voltage | 24VDC | 24VDC | 24VDC |
| Connection Thread | 3/8″NPT (general) | 3/8″NPT (general) | 3/8″NPT (general) |
| Inlet Water Pressure | 0MPa | 0MPa | 0MPa |
| Operating Pressure | 0.5MPa | 0.5MPa | 0.5MPa |
| Current | ≤1.2A | ≤1.3A | ≤1.6A |
| Work Flow | ≥650mL/min | ≥850mL/min | ≥1050mL/min |
| Open Flow | ≥1100mL/min | ≥1300mL/min | ≥1400mL/min |
| Max Pressure | 0.8-1.0MPa | 0.8-1.0MPa | 0.8-1.0MPa |
| Max Current | 1.55A | 1.8A | 2.1A |
| Suggested Pure Water/Condensed Water Ratio | 1:3 | 1:3 | 1:3 |
Additional Information
- Self-priming design for easy operation.
- Suitable for both residential and commercial use.
- High efficiency with low energy consumption.
