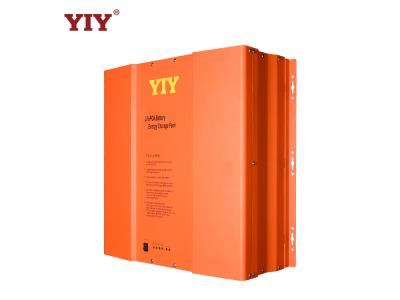

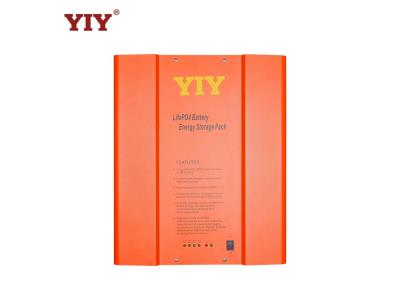

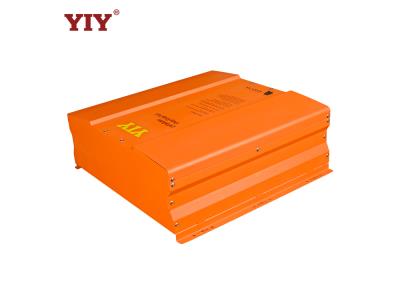

LiFePO4 battery pack LFP 2.56kwh 5.12kwh 10.24kwh energy storage pack 48V 100AH
Inquire NowDescription
The LiFePO4 Battery Pack is an advanced energy storage solution, available in three capacities: 2.56kWh, 5.12kWh, and 10.24kWh. Designed for high reliability and long cycle life, this battery pack offers at least 3500 cycles at 80% Depth of Discharge (DOD). It features a customized charger that maximizes system life and incorporates a high-reliability intelligent Battery Management System (BMS). This unique system utilizes automatic calibration active balancing technology for optimal performance. The pack supports standard CAN and RS485 communication protocols to facilitate multiple connections in parallel, ensuring efficient monitoring and management of energy storage systems. Ideal for indoor use, it operates best in environments with temperatures between 0-30℃ and up to 65% humidity.
Specifications
| Model | Rated Capacity | Voltage Output | Battery Cells | Protection Rating | Cycle Life |
|---|---|---|---|---|---|
| 2.56 KWH (LFP12200M / LFP 24100M) | 2.56 KWH | 12.8/25.6 Vdc | 8 PCS 100AH LiFePO4 | IP31 | 3500 cycles at 80% DOD |
| 5.12 KWH (LFP12400M / LFP 24200H / LFP 48100M) | 5.12 KWH | 12.8/25.6/51.2 Vdc | 16 PCS 100AH LiFePO4 | IP31 | 3500 cycles at 80% DOD |
| 10.24 KWH (LFP 24400H / LFP 48200M) | 10.24 KWH | 25.6/51.2 Vdc | 32 PCS 100AH LiFePO4 | IP31 | 3500 cycles at 80% DOD |
Additional Information
- Customized charger for system life maximization.
- Environmentally friendly design suitable for home energy storage systems, communication stations, and other applications.
- Professional after-sales support with a 12-month warranty.
- Available for OEM and ODM services.
