light keel machine for metal ceiling tiles machine
Inquire NowDescription
The light keel machine for metal ceiling tiles is a state-of-the-art roll forming machine designed for efficiency and precision in producing metal ceiling tiles. This machine utilizes galvanized sheets as its primary material, ensuring durability and reliability in construction applications. With automatic operation capabilities, it simplifies the manufacturing process, enabling users to achieve consistent results with minimal manual intervention. The machine supports a sheet thickness range of 0.35mm to 0.6mm, making it versatile for various project requirements.
Specifications
| Attribute | Details |
|---|---|
| Material | Galvanized sheet |
| Equipment Operation | Automatically |
| Voltage | AC380/50-60Hz |
| Thickness of Sheet (mm) | 0.35mm – 0.6mm |

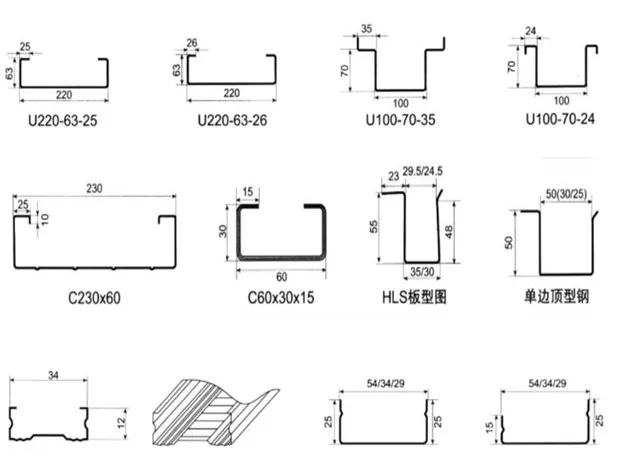

| Formed Width (mm) | 25 x 25 |
| Productivity (m/min) | 0 – 25 |
| Size (mm) | 4000 x 1300 x 1100 |
| Material of Rollers | 45# steel |
| Total Power (kw) | 6 |
| Driven System | Single |
| Power of Hydraulic System (KW) | 3 |
| Power of Main Molding Core (KW) | 3 (Cycloidal planetary gear speed reducer) |
Additional Information
Guarantee: 12 Months guarantee. If any part of the machine is broken, the best part will be supplied, but if the damaged parts are due to operational error, the buyer will bear the shipping fee.
After-sale Service: Technicians can be sent to the buyer’s country for machine repairs; however, the buyer must cover all costs, including visa, roundtrip ticket, accommodation, and a salary of $100 per day.
Images
