Description

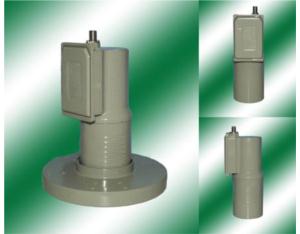

The DP651 LNBF features the lowest noise figure in its class, making it an essential component for any professional satellite communication system. Designed for optimal performance, this Low-Noise Block Feedhorn (LNBF) excels in providing high-quality signal reception with minimal interference. Its advanced technology ensures exceptional stability and low phase noise, allowing for crystal-clear transmission and reception of satellite signals.
Specifications
| Model | DP651 |
|---|---|
| Input Frequency | 3.4 – 4.2 GHz |
| L.O. Frequency | 5.15 GHz ± 1 MHz |
| Stability | ±2 MHz (-40 ℃ to +70 ℃) |
| L.O. Phase Noise | -55 dBc/Hz @ 1KHz -85 dBc/Hz @ 10KHz -105 dBc/Hz @ 100KHz |
| Output Frequency | 950 – 1750 MHz |
| Conversion Gain | 65 dB (Typ) |
| Gain Flatness | ±0.5 dB/36 MHz |
| Noise Figure | 13°K |
| Input V.S.W.R | 2.5:1 |
| Output V.S.W.R | 2.5:1 |
| Local Leakage at Input | -45 dBm |
| Image Rejection | 50 dB |
| Output Power | +5 dBm (at 1 dB compression) |
| Cross Polar Isolation | 23 dB Min |
| DC Supply Voltage | 11-14.5 V (V), 15.5-22 V (H) |
| Supply Current | 130 mA (Max) |
| Operating Temperature | -40 ℃ to +70 ℃ |
| Relative Humidity | 0% to 95% |
| RF Input Connector | Wave Guide WC-229 |
| IF Output Connector | F Type Female |
| Output Impedance | 75 Ohms |
| The color of the LNB’s shape is customizable. | |
Additional Information
- Ideal for high-performance satellite applications.
- Allows for flexible installation options based on user preferences.
