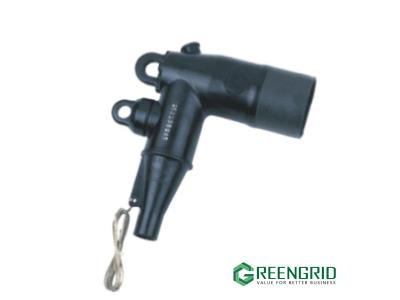

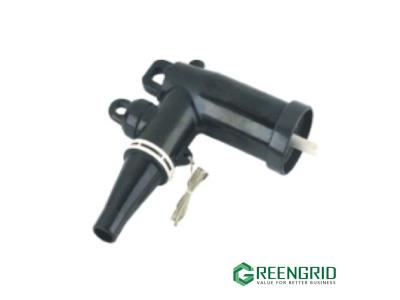

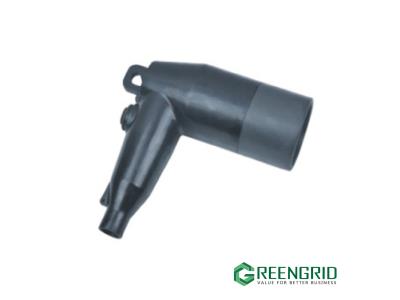

Loadbreak Elbow connector
Inquire NowDescription
The Loadbreak Elbow connector is a state-of-the-art solution designed for seamless connection of underground cables. This fully-shielded and insulated plug-in termination is compatible with conductor cross-sections ranging from 25mm² to 150mm², ensuring versatility and reliability in various applications. Its innovative loadbreak probe features an ablative arc-follower tip, which provides exceptional loadbreak switching characteristics, making it a crucial component in electrical systems.
Constructed from high-quality peroxide-cured EPDM insulation, the Loadbreak Elbow is engineered for durability and performance. It is specifically designed to connect underground cables to transformers, switchgear, and 200A junctions equipped with loadbreak bushings. Additionally, the test point includes hot line voltage indicators, enhancing safety and operational efficiency. This connector meets the latest ANSI/IEEE 386 standards, ensuring compliance and reliability in critical electrical applications.
Specifications
| Attribute | Details |
|---|---|
| Compatibility | Conductor cross section 25mm² to 150mm² |
| Insulation Material | Peroxide-cured EPDM |
| Application | Connection to transformers, switchgear, and 200A junctions |
| Standards | Meets ANSI/IEEE 386, latest version |
| Features | Loadbreak probe with ablative arc-follower tip, hot line voltage indicators |
