LOGO – 24CE Programmable Logic Controller

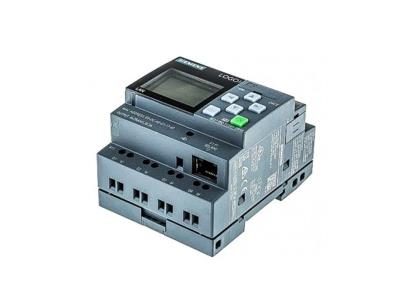

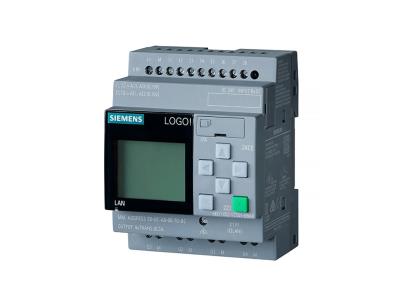

Inquire NowThe LOGO! 24CE Programmable Logic Controller is a versatile and powerful logic module designed for a variety of industrial applications. Featuring a robust configuration with 8 digital inputs, 4 outputs, and the capability to expand modularly, this controller offers unmatched flexibility. It operates on a supply voltage of 24 V DC and is equipped with an integrated Ethernet web server that allows for remote monitoring and data logging. With a memory capacity of 400 blocks, it supports older projects, ensuring seamless transitions for users upgrading from previous models. The LOGO! 24CE is perfect for applications in the automotive industry, mechanical equipment manufacturing, warehousing technology, steel industry, building management systems, power generation, and various other sectors.
| Attribute | Details |
|---|---|
| Series | LOGO! 8.2 |
| Supply Voltage | 24 V dc |
| Output Type | Transistor |
| Number of Outputs | 4 |
| Input Type | Analogue, Digital |
| Number of Inputs | 8 |
| Communication Port Type | Ethernet |
| Mounting Type | DIN Rail |
| Dimensions | 90 x 71.5 x 60 mm |
| Display Included | Yes |
| Termination Type | Screw |
| For Use With | LOGO Series |
| Number of Communication Ports | 1 |
| Network Type | Ethernet |
| Module Type | Logic Control Module |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +55°C |
| Output Current | 300 mA |
| Application | Build In Web-Server, Datalog, User-Defined Web Page |
| Standards Met | CE, CSA Approval, EN 55011, EN 60529, FM Approval, IEC 61131, UL Approval, VDE 0631 |
This controller is ideal for various applications including automotive assembly lines, mechanical equipment manufacturing, warehousing, and much more, making it a versatile choice for any industrial automation project.
