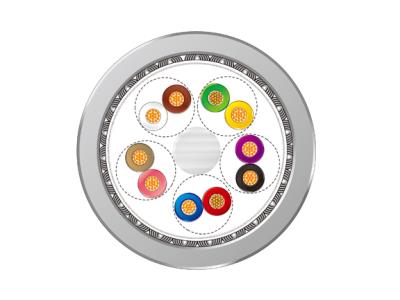

LONGFLEX CHAIN FD 431 CY-TP
Inquire NowDescription
The LONGFLEX CHAIN FD 431 CY-TP is a high-performance signal control cable designed for low voltage systems in CNC machine tools, engraving machines, woodworking machines, and various automation equipment production lines. Specifically engineered for environments with significant electrical interference, it is ideal for drag chain applications or scenarios requiring frequent movement.
This cable combines flexibility and durability, making it suitable for both fixed and mobile applications. With a robust construction that includes fine stranded bare copper conductors and high-quality PVC insulation, the LONGFLEX CHAIN FD 431 offers reliable performance under a wide range of conditions.
Specifications
| Parameter | Value |
|---|---|
| Temperature Range | Fixed Application: -40°C~80°C Mobile Application: -5°C~70°C |
| Test Voltage | 500V/min (AC) |
| Insulation Resistance | ≥10MΩ.km at 20°C |
| Rated Voltage | 30V |
| Minimum Bending Radius | Fixed Application: 4D (D=cable diameter) Mobile Application: 7.5D (D=cable diameter) |
| Technical Certification | UL20276 |
| Drag Chain Application Life | 3~8 million times |
| Conductor | Fine stranded bare copper, IEC 60228/VD E0295 class 6 |
| Insulation | PVC |
| Shielded | Tinned copper braiding |
| Jacket | PVC |
| Color | Grey (similar to RAL 7001) |
Additional Information
- Flame Resistance: Complies with IEC60332-1 standards.
- Flexibility: Excellent flexibility properties suitable for dynamic applications.
- Oil Resistance: High resistance to oil exposure.
- EMI Resistance: Effective performance against external electromagnetic interference.
