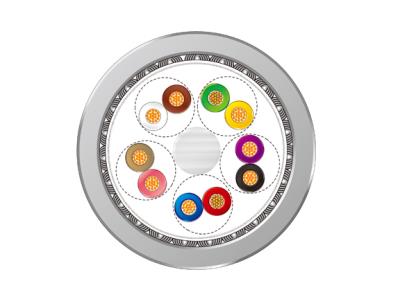

LONGFLEX CHAIN FD 431 TP
Inquire NowDescription
The LONGFLEX CHAIN FD 431 TP is a highly versatile and reliable cable designed specifically for use in low voltage systems. Ideal for CNC machine tools, engraving machines, woodworking machines, and various automation equipment production lines, this cable excels in applications requiring frequent movement or drag chain use. Its robust construction ensures optimal performance in demanding environments.
Specifications
| Attribute | Details |
|---|---|
| Temperature Range | Fixed Application: -40°C to 80°C Mobile Application: -5°C to 70°C |
| Test Voltage | 500V/min (AC) |
| Insulation Resistance | ≥10MΩ.km at 20°C |
| Rated Voltage | 30V |
| Minimum Bending Radius | Fixed Application: 4D (D = cable diameter) Mobile Application: 7.5D (D = cable diameter) |
| Technical Certification | UL20276 |
| Application of Drag Chain | 3 to 8 million times |
| Conductor | Fine stranded bare copper, according to IEC 60228/VDE 0295 class 6 |
| Insulation | PVC |
| Insulation Color | According to DIN 47100 |
| Jacket | PVC |
| Color | Grey (similar to RAL 7001) |
Additional Information
- Flame resistance according to IEC60332-1
- Excellent flexibility properties
- Small bending radius for optimal maneuverability
- Good oil resistance for extended durability
