Description
The LONGFLEX SERVO 317 CY is a high-performance cable designed for use in connecting motors to converters or controllers in CNC machines, robots, and other automated equipment. This cable is specifically engineered to withstand serious electrical interference, making it ideal for demanding environments. Whether in fixed applications or situations involving occasional movement, the LONGFLEX SERVO 317 CY offers exceptional reliability and durability.
With a wide operating temperature range, excellent flexibility, and superior resistance to electromagnetic interference and oil, this cable is built to perform under tough conditions. Its robust construction and flame-retardant properties ensure safety and longevity, making it a preferred choice for industrial applications.
Specifications
| Parameter | Details |
|---|---|
| Temperature Range | Fixed application: -40°C to 90°C Occasional movement: -5°C to 90°C |
| Test Voltage | Power Line: 4000V/min (AC) core/core and core/shield Control Wire: 4000V/min (AC) core/core and 300V/min (AC) core/shield |
| Insulation Resistance (20°C) | ≥20MΩ.km |
| Rated Voltage | Power Line: 600/1000V Control Line: 300/500V |
| Minimum Bending Radius | Fixed Application: 6D (D = cable diameter) Occasional Movement: 15D (D = cable diameter) |
| Conductor | Fine bare copper stranded conductor, compliant with IEC 60228/VDE 0295 class 5 |
| Insulation | PVC |
| Insulation Color | Black cores with white numbering, green-yellow conductor (according to DIN VDE 0293) |

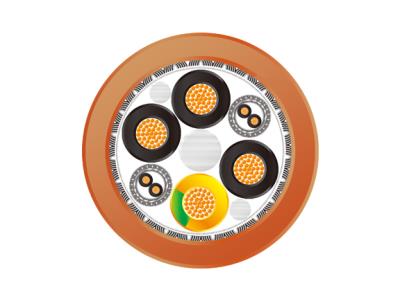

| Shield | Control pair AL/Mylar screen and tinned copper braiding, tinned copper overall braiding |
| Jacket | PVC, Orange (similar to RAL 2003) |
Additional Information
- Flame retardant properties meet IEC 60332-1 standards.
- Good flexibility and small bending radius for easy installation.
- Excellent resistance to external electromagnetic interference.
- Good oil resistance for enhanced durability.
- Wider operating temperature range ensures adaptability in various environments.
