LONGFLEX SERVO FD 320 CY
Inquire NowDescription
The LONGFLEX SERVO FD 320 CY is a high-performance connecting cable designed for demanding applications in CNC machine tools, robots, and other equipment where electrical interference is a concern. This cable is specifically engineered for environments requiring frequent movement and stability, making it ideal for drag chains. With its robust construction and reliable performance, it offers exceptional flexibility and durability for both fixed and mobile applications.
Specifications
| Parameter | Details |
|---|---|
| Temperature Range | Fixed Application: -40°C~80°C Occasional Movement: -5°C~70°C |
| Test Voltage | core/core: 4000V/min (AC) core/shield: 4000V/min (AC) |
| Insulation Resistance (20°C) | ≥20MΩ.km |
| Rated Voltage | 600/1000V |
| Minimum Bending Radius | Fixed Application: 4D (D=Cable diameter) Mobile Application: 7.5D (D=Cable diameter) |
| Application of Drag Chain | 3~8 million times |

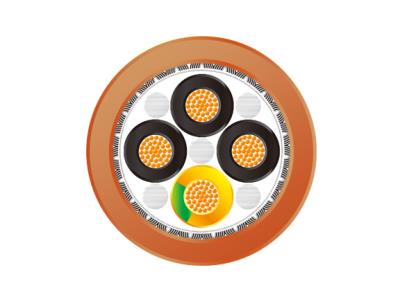

| Conductor | Ultra-fine stranded bare copper, compliant with IEC 60228/VDE 0295 class 6 |
| Insulation | PP |
| Insulation Color | Black cores with white numbering, green-yellow conductor (according to DIN VDE 0293) |
| Shield | Tinned copper overall braiding |
| Jacket | PVC |
| Color | Orange (similar to RAL 2003) |
Additional Information
- Flame retardance satisfies IEC60332-1
- Good flexibility and small bending radius
- Excellent resistance to external electromagnetic interference
- Good oil resistance and low capacitance
