LONGTRONIC BUS CANBUS
Inquire NowDescription
The LONGTRONIC BUS CANBUS is a high-performance cable designed for various bus systems, catering to automation technology and control applications within industries such as textiles, construction machinery, and medical equipment. This robust cable is suitable for both fixed installations and occasional movement, ensuring reliable data transmission and network connectivity.

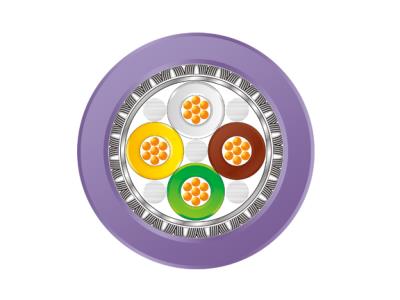

Manufactured using a star quad cable design, it features a smaller outer diameter, making it ideal for tight spaces. The cable is built to withstand challenging environments, offering flame resistance and excellent protection against external electromagnetic interference (EMI).
Specifications
| Attribute | Details |
|---|---|
| Application | Widely used in bus systems, automation technology, control combinations |
| Temperature Range | Fixed Application: PVC -20℃ to 70℃; Occasional Movement: PVC -5℃ to 60℃ |
| Test Voltage | 1500V/min (AC) |
| Characteristic Impedance | 120±15Ω @ 1MHz |
| Rated Voltage | 300V |
| Minimum Bending Radius | Fixed: 10D (D=cable diameter); Occasional: 15D (D=cable diameter) |
| Conductor | Stranded bare copper |
| Insulation | Foamed PE |
| Color (Insulation) | According to DIN47100 |
| Shielded | Tinned copper braid |
| Jacket | PVC |
| Color (Jacket) | Purple (similar to RAL4001) |
Additional Information
- Flame resistance according to IEC60332-1
- Excellent performance against external EMI
- Reliable data transmission performance
