LONGTRONIC BUS CC-Link FD
Inquire NowDescription

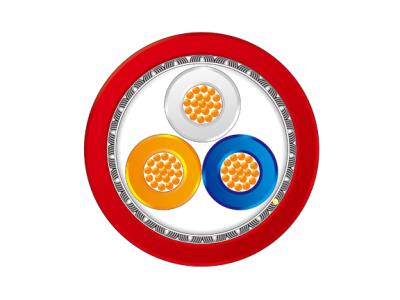

The LONGTRONIC BUS CC-Link FD is a high-performance cable specifically designed for testing sensors and propellers within CC-LINK systems. This cable efficiently manages control and information data, making it an ideal choice for applications in the automobile industry, hotel monitoring systems, and environments requiring drag chain or frequent movement. Its robust construction ensures durability and reliability even in demanding conditions.
Specifications
| Attribute | Details |
|---|---|
| Temperature Range (Fixed Application) | -40°C ~ 80°C |
| Temperature Range (Moved Application) | -20°C ~ 70°C |
| Test Voltage | 2000V / min (AC) |
| Characteristic Impedance | 110±15Ω @ 1MHz |
| Rated Voltage | 300V |
| Minimum Bending Radius (Fixed Application) | 7.5D (D = cable diameter) |
| Minimum Bending Radius (Moved Application) | 15D (D = cable diameter) |
| Conductor | Stranded bare copper |
| Insulation | Foamed PE |
| Inner Jacket | FRNC |
| Shielded | Tinned copper braid |
| Jacket Material | PUR |
| Jacket Color | Red |
| Available Colors | White, Blue, Yellow |
Additional Information
- Flame resistant according to IEC60332-1
- Excellent resistance to external EMI
- PUR jacket is highly resistant to oil, abrasion, and hydrolysis
- Halogen-free construction
