LONGTRONIC BUS DeviceNet FD
Inquire NowDescription
The LONGTRONIC BUS DeviceNet FD is a highly efficient solution designed for DeviceNet Bus systems, enabling seamless connection of industrial equipment within automation processes. This product stands out as a cost-effective network solution that adheres to open network standards. It employs a dual-pair configuration—one pair dedicated to data transmission and another for power supply—making it ideal for highly flexible applications in various industrial environments.
Specifications
| Technical Parameter | Value |
|---|---|
| Temperature Range – Fixed Application | PVC / PUR: -40°C ~ 80°C |
| Temperature Range – Moved Application | PVC: -5°C ~ 60°C; PUR: -20°C ~ 70°C |
| Test Voltage | 1500V / min (AC) |
| Characteristic Impedance | 120±15Ω @ 1MHz |
| Rated Voltage | 300V |
| Insulation Resistance | 24AWG ≥ 1GΩ.km; 22AWG ≥ 10M.km |
| Minimum Bending Radius – Fixed Application | 10D (D = cable diameter) |
| Minimum Bending Radius – Moved Application | 15D (D = cable diameter) |
Additional Information

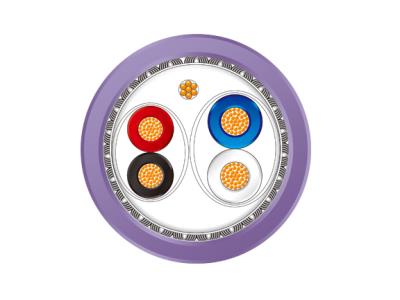

- Cable Construction
- Conductor: Fine stranded tinned copper wire
- Insulation: Foamed PE (24AWG), PE (22AWG)
- Color: White, Blue (24AWG), Red, Black (22AWG)
- Shielded: AL/Mylar individual screen, tinned copper overall braid
- Jacket: PVC, PUR
- Color: Purple (similar to RAL4001)
- Features
- Flame resistance according to IEC60332-1
- Excellent performance resistant to external EMI
- PUR jacket cable is highly resistant to oil, abrasion, and hydrolysis
- Power core and data are perfectly combined within one cable
