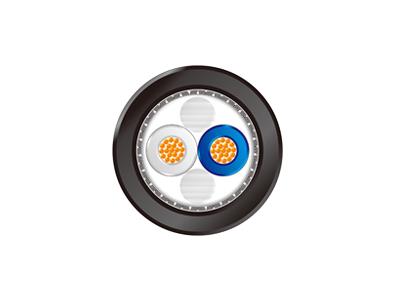

LONGTRONIC BUS RS-485 FD
Inquire NowDescription
The LONGTRONIC BUS RS-485 FD is a specialized communication cable designed for industrial automation and building control networks. Complying with the RS-485 communication protocol, this cable is highly versatile, making it suitable for complex controlled networks. Its robust design accommodates various applications, particularly in environments requiring frequent movement or drag chains.
The cable features both fixed and moved application capabilities, ensuring reliable performance across a wide temperature range. With excellent flame resistance and low susceptibility to external electromagnetic interference (EMI), it is ideal for demanding industrial settings.
Specifications
| Parameter | Details |
|---|---|
| Temperature Range |
|
| Test Voltage | 1500V/min (AC) |
| Characteristic Impedance | 120±15Ω @ 1MHz |
| Minimum Bending Radius |
|
| Conductor | Fine stranded bare copper |
| Insulation | Foamed PE |
| Shield | AL/Mylar screen and tinned copper braiding |
| Jacket | PVC/PUR |
| Color | Black |
Additional Information
- Flame resistance according to IEC60332-1
- Excellent resistance to external EMI
- PUR jacket cable is highly resistant to oil, abrasion, and hydrolysis
- Halogen-free PUR jacket cable
