LONGTRONIC SENSOR FD 307 P
Inquire NowDescription
The LONGTRONIC SENSOR FD 307 P is a high-performance industrial sensor cable designed to enhance the monitoring of processing data across various applications. This sensor cable is ideal for automatic testing and control within industrial production environments, as well as in resource exploration and environmental protection. Its exceptional flexibility makes it suitable for high-mobility applications, ensuring reliable performance in dynamic settings.
Specifications
| Attribute | Details |
|---|---|
| Temperature Range | Fixed Application: -40℃~80℃ Moved Application: -40℃~80℃ |
| Test Voltage | 2000V/min (AC) |
| Insulation Resistance (20℃) | ≥20MΩ.km |
| Rated Voltage | 300V |
| Minimum Bending Radius | Fixed Application: 4D (D=cable diameter) Moved Application: 7.5D (D=cable diameter) |
| Conductor | Stranded bare copper |
| Insulation | XLPE |

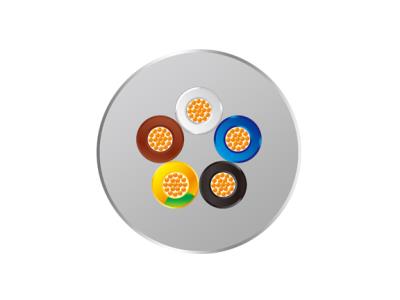

| Insulation Color | Three cores: blue, brown, black Four cores: blue, brown, black, white Five cores: blue, brown, black, white, green-yellow |
| Jacket | PUR |
| Color | Grey (similar to RAL 7001) |
Additional Information
- Flame resistance according to IEC60332-1
- Excellent flexibility properties
- Small bending radius for easy installation
- PUR jacket is highly resistant to oil, abrasion, and hydrolysis
- XLPE insulation minimizes shrinkage during welding
