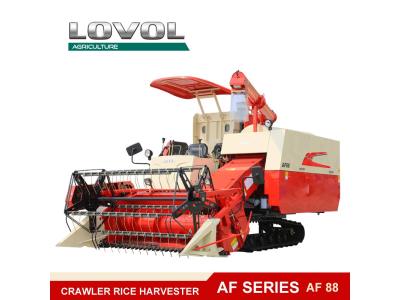

LOVOL AF SERIES CRAWLER RICE HARVESTER
Inquire NowDescription
The LOVOL AF Series Crawler Rice Harvester is engineered for exceptional performance in rice harvesting, equipped with a robust Dachai diesel engine that offers an impressive torque reserve exceeding 35%. This ensures that it can efficiently harvest upright and lodged rice crops, even in challenging conditions like rotted fields. Its innovative Lovol 90 gearbox provides high reliability and a compact design, allowing for increased ground clearance.
Incorporating advanced technology, the harvester features an Italy Interpump with a 45 displacement strong pressure HST, enabling seamless stepless transmission for enhanced handling comfort. The steering clutch is fitted with imported Calais friction discs, renowned for their reliability and thermal stability, showing 30% to 50% improved wear resistance compared to domestic alternatives. The equipment is designed with a 500×53 crawler (with an optional 550) and a grounding length of 1700, resulting in low ground pressure and superior passing performance. With a ground clearance of 325mm, the harvester excels in navigating varying terrains.
Boasting a maximum operating speed of 2.41m/s, the LOVOL AF Series is 10% faster than competitors, ensuring the highest efficiency in the field.
Specifications
| Item | Specification | |
|---|---|---|
| AF88 | AF108 | |
| Cutting Width(mm) | 2.0/2.2 | 2.0/2.2 |
| Engine | 88Hp, Water-Cooled Four-Stroke Turbocharged Engine | 100HP, Water-Cooled Four-Stroke Turbocharged Engine |
| Gearbox Type | LOVOL 90 Gearbox | LOVOL 90 Gearbox |
| Transmission Type | HST + Three-Gear Range Shifts | HST + Three-Gear Range Shifts |
| Dimensions(L*W*H)(mm) | 5160*2750*2750 | 5160*2750*2750 |
| Weight(kg) | 2970 | 2970 |
| Track Specification(Width*Link Pinch*Quantity)(mm) | 500 (550)x90x53 | 500 (550)x90x53 |
| Ground Clearance(mm) | 330 | 330 |
| Grain Tank Volume(m3) | 1.6/1.8 | 1.6/1.8 |
| Operating Speed (km/h) | 0-8.67 | 0-8.67 |
