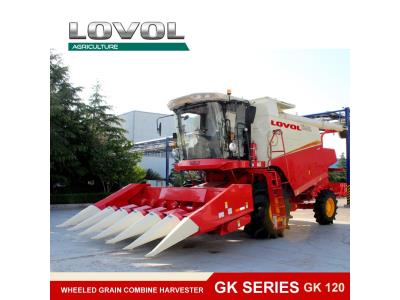

LOVOL HARVEST GK120
Inquire NowDescription
The LOVOL HARVEST GK120 is a cutting-edge agricultural machine designed for efficiency and performance in modern farming. Powered by a robust Yuchai double power engine, it offers a one-click switch between 185HP and 220HP, ensuring energy conservation and reduced fuel consumption. This innovative harvester features an International Advanced Technology of Large Diameter Longitudinal Axle Flow Separation, with a threshing cylinder measuring 660 mm x 3015 mm, providing a larger separation area and minimizing broken grains.
Equipped with a folding 7m grain tank, the GK120 reduces the frequency of grain unloading, thereby enhancing operational efficiency. The hydraulic rotation raised unloading cylinder boasts an unloading height of over 4.5m, making it adaptable to various receiving vehicles and reducing auxiliary unloading time.
The hydrostatic drive and electric control integration streamlines operation for headers, cylinders, and walking systems, making it user-friendly. Additionally, the visual reverse system offers drivers a clear view of the engine and grain tank, ensuring comfortable operation and reducing fatigue during long working hours.
Specifications
| Model | Attribute | Details |
|---|---|---|
| GK120 | Dimensions (L*W*H)(mm) | 9520 x 5700 x 4400 |
| GK120 | Weight (kg) | 12190 |
| GK120 | Engine | Yuchai 220HP/LOVOL power 220HP |
| GK120 | Emission Level | Tier III |
| GK120 | Cutting Width | 4.57m / 5.34m 6X650mm |
| GK120 | Feed Capacity | 12KG/S |
| GK120 | Threshing Cylinder Type | Lengthways |
| GK120 | Threshing Cylinder Diameter x Length (mm) | 660 x 3015 |
| GK120 | Cleaning Area (㎡) | 4.3 |
| GK120 | Chassis Transmission | Static hydraulic |
| 4X4 | ||
| GK120 | Driving Wheelbase (mm) | 2820 |
| GK120 | Steering Wheelbase (mm) | 2600 |
| GK120 | Grain Tank Capacity (m³) | 7 |
| GK120 | Cab | AC |
Additional Information
For optimal performance, it is recommended to regularly maintain the engine and check hydraulic systems. Ensure that the grain tank is emptied regularly during operation to maintain efficiency and avoid overloading.
