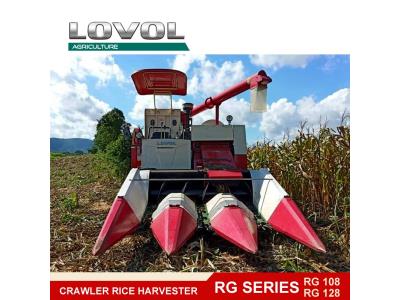

LOVOL RG SERIES CRAWLER RICE HARVESTER
Inquire NowDescription
The LOVOL RG Series Crawler Rice Harvester is engineered for exceptional performance in harvesting both upright and lodged rice crops. Powered by the robust Dachai engine, it features a torque reserve exceeding 35%, ensuring stability and efficiency even in challenging conditions. Its reliable performance is complemented by a significant operational efficiency increase of 10% compared to similar machines, allowing you to complete your work in less time.
Equipped with the highly reliable LOVOL 90 gearbox, this harvester provides a compact design and increased ground clearance for superior maneuverability. The Italian Interpump’s strong pressure HST enables smooth, stepless transmission, enhancing handling comfort while ensuring lasting durability. The use of imported Calais friction discs in the steering clutch improves wear resistance by 30-50%, adding to the longevity of the harvester.
Featuring a 500×53 crawler (with an optional 550 size) and a grounding length of 1700, it demonstrates excellent passing performance with a ground clearance of 325mm. With an operating speed of up to 2.41m/s, this harvester is designed for maximum efficiency, making it 10% faster than competing models.
Specifications
| Item | Specification | |
|---|---|---|
| RG108 | RG128 | |
| Cutting Width(mm) | 2/2.2 | 2.4/2.8 |
| Engine | 100HP, Water-Cooled Four-Stroke Turbocharged Engine | 125HP, Water-Cooled Four-Stroke Turbocharged Engine |
| Gearbox Type | LOVOL 90 Gearbox | LOVOL 90 Gearbox |
| Transmission type | HST + Three-Gear Range Shifts | HST + Three-Gear Range Shifts |
| Dimensions(L*W*H)(mm) | 5160*2750*2750 | 5500*2790*3070 |
| Weight(kg) | 2970 | 4100 |
| Track Specification(Width*Link Pinch*Quantity)(mm) | 500 (550)x90x53 | 500 (550)x90x56 |
| Ground Clearance(mm) | 330 | 330 |
| Operating Speed (km/h) | 0-8.67 | 0-8.67 |
Additional Information
- Engine torque reserve exceeds 35% for optimized harvesting efficiency.
- Ground clearance of 325mm enhances the passing performance.
- Operating speed reaches up to 2.41m/s, making it faster than competing brands.
