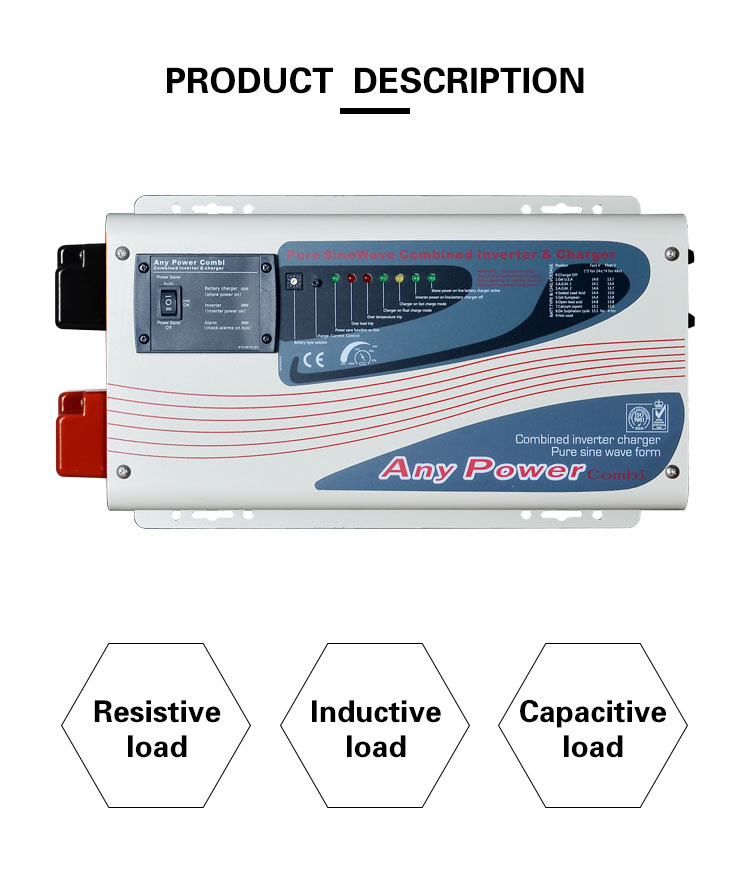

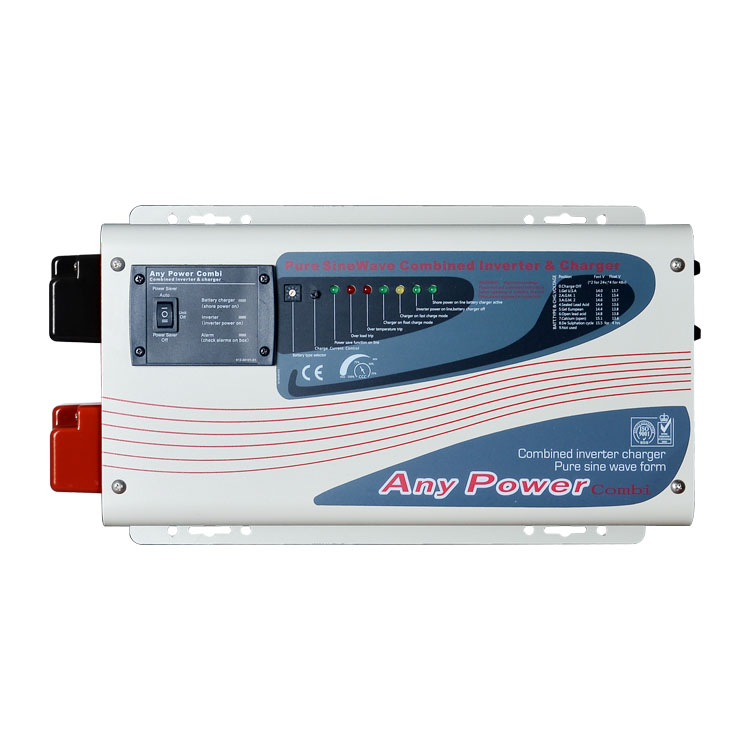

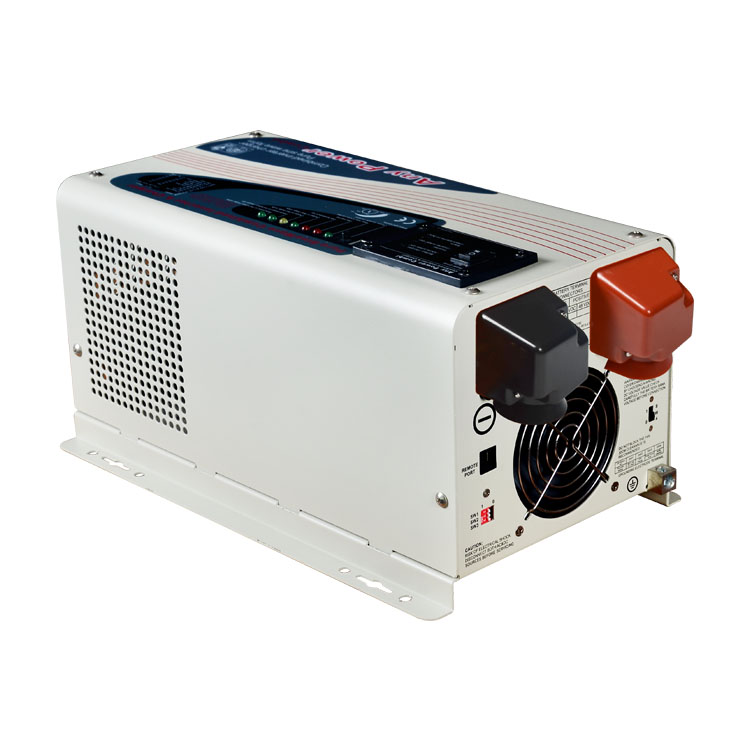

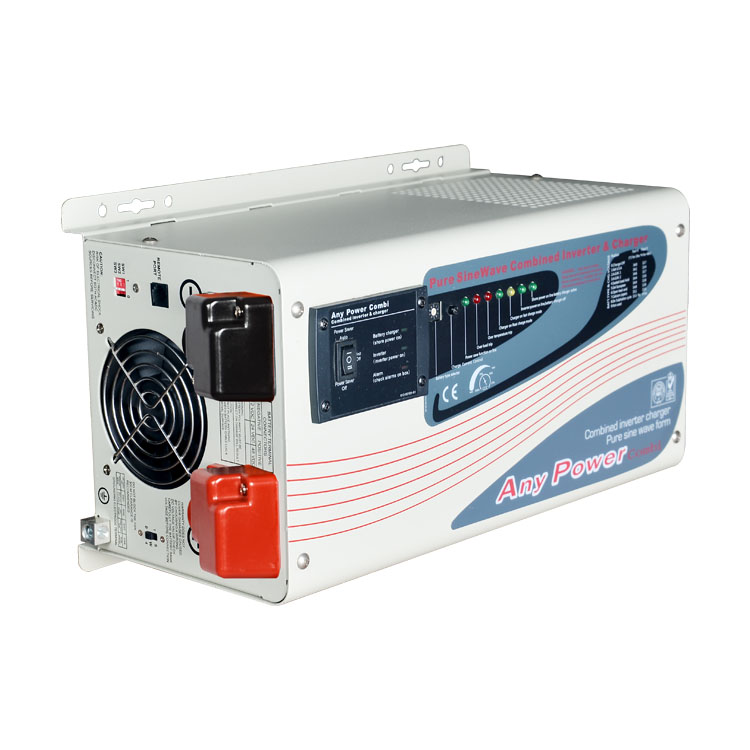

Low idle consumption pure sine wave inverter AP series inverter 1kw-6kw with AC charger
Inquire NowDescription

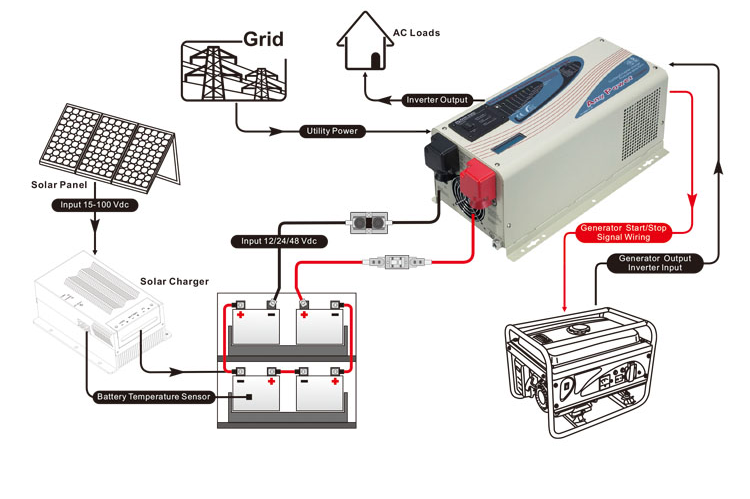

The Low Idle Consumption Pure Sine Wave Inverter APP Series is a highly efficient inverter designed to convert DC power into clean AC power. With a capacity range from 1kW to 6kW and an integrated AC charger, this inverter is perfect for various applications, including renewable energy systems. Its innovative features ensure high performance, reliability, and energy conservation, making it an ideal choice for both residential and industrial settings.
This inverter showcases advanced technology, including a high overload ability that can handle up to 300% of its rated power for 20 seconds, ensuring it can meet the demands of power-hungry devices. The low quiescent current and “Power Saving Mode” further enhance its energy efficiency, allowing users to save on electricity costs.

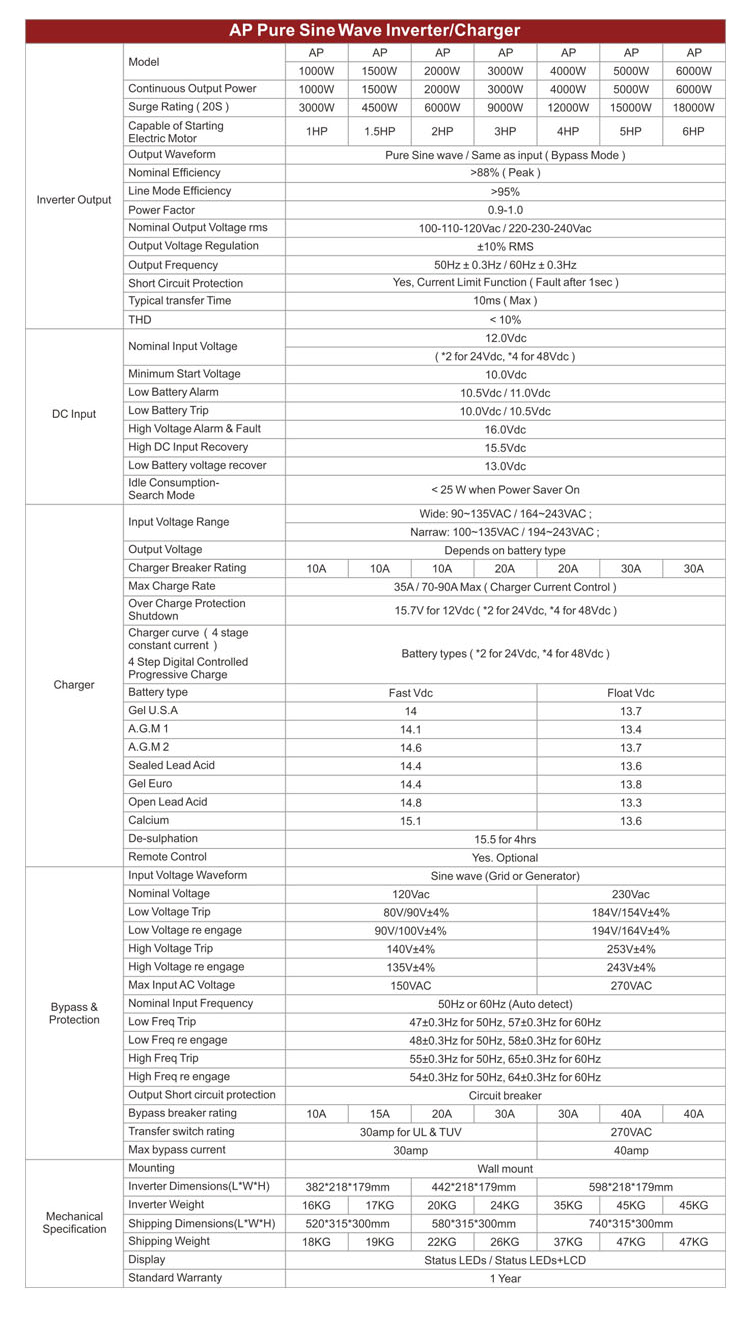

Specifications
| Feature | Description |
|---|---|
| Power Range | 1kW – 6kW |
| Overload Capability | 300% for 20 seconds |
| Idle Consumption | Low quiescent current |
| Charging Method | 4-step intelligent battery charging with PFC |
| Battery Types | 8 preset types plus de-sulphation for flat batteries |
| Charge Rate | Up to 110Amp, adjustable from 0%-100% |
| Transfer Time | 10 ms typical |
| Protection Features | Extensive protections against various harsh situations |
| Cooling System | Multiple controlled cooling fan |
| Battery Recovery Point | 13VDC dedicated for renewable energy systems |
Additional Information
This inverter is equipped with smart remote control functionality and provides a 15-second delay before transfer when AC power resumes, offering extra protection for connected loads when used with a generator. It also allows for startup and power continuation with depleted batteries, making it versatile for various energy needs.
