Description

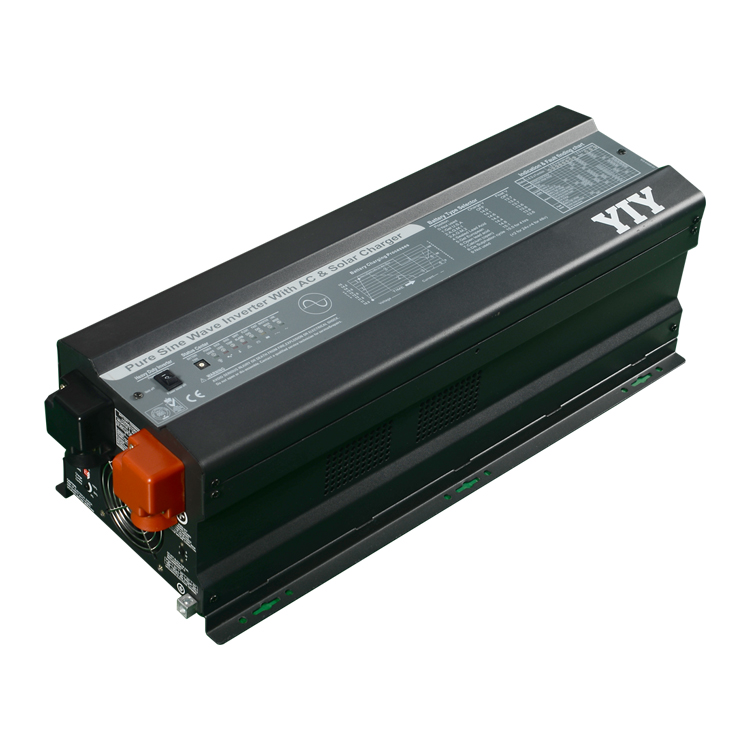

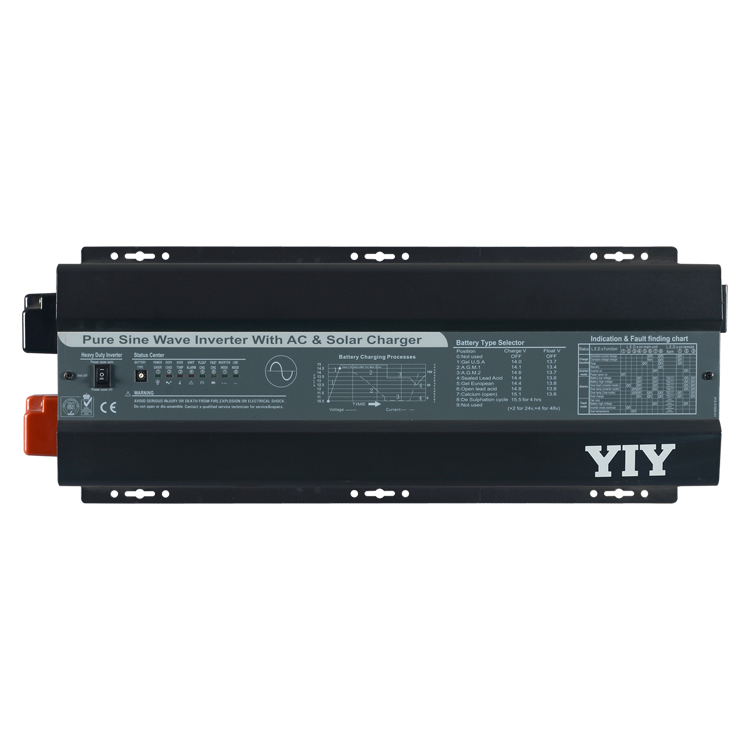

The APP Series Pure Sine Wave Inverter is an advanced and versatile power solution, integrating an inverter, battery charger, and AC auto-transfer switch into one compact system. With a peak conversion efficiency of 92%, this inverter is engineered to handle demanding power needs while protecting your equipment. Its unique features include power factor correction, sophisticated multi-stage charging, and a pure sine wave output, ensuring reliable performance even under high surge conditions.

Key Features:

• High overload ability up to 300% of rated power for 20 seconds
• Power Saving Mode to reduce energy consumption
• 4-step intelligent battery charging with PFC
• 8 preset battery type selectors, including de-sulphation mode for flat batteries
• Powerful charge rate up to 110Amp, adjustable from 0%-100%
• Fast transfer time between battery and AC power, ensuring continuous operation
• Smart remote control for convenient operation
• 15-second delay before transfer when AC resumes for added protection
• Ability to startup and provide power with depleted batteries
• 30A/40A through current capability
• Multiple controlled cooling fans for efficient thermal management
• Extensive protections against harsh operating conditions

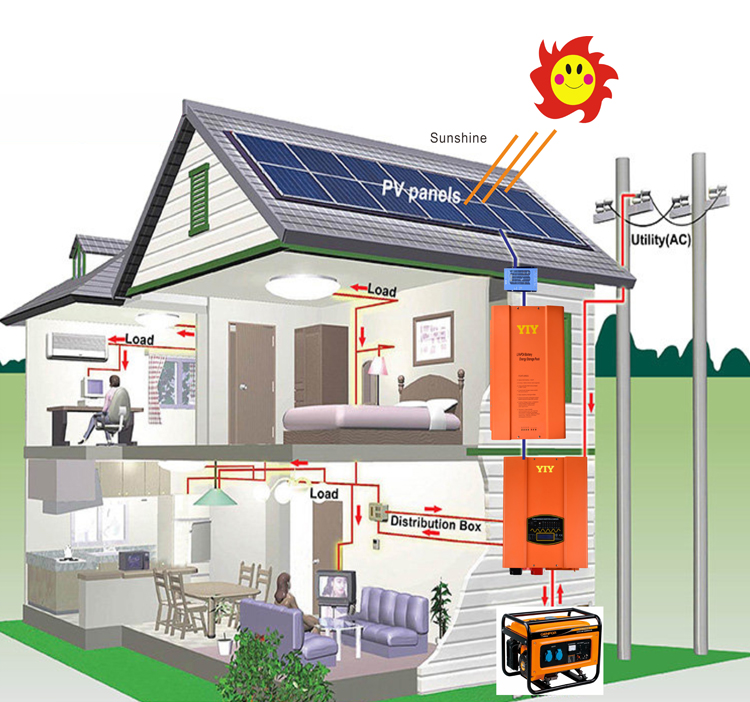

• Dedicated 13VDC battery recovery point for renewable energy systems

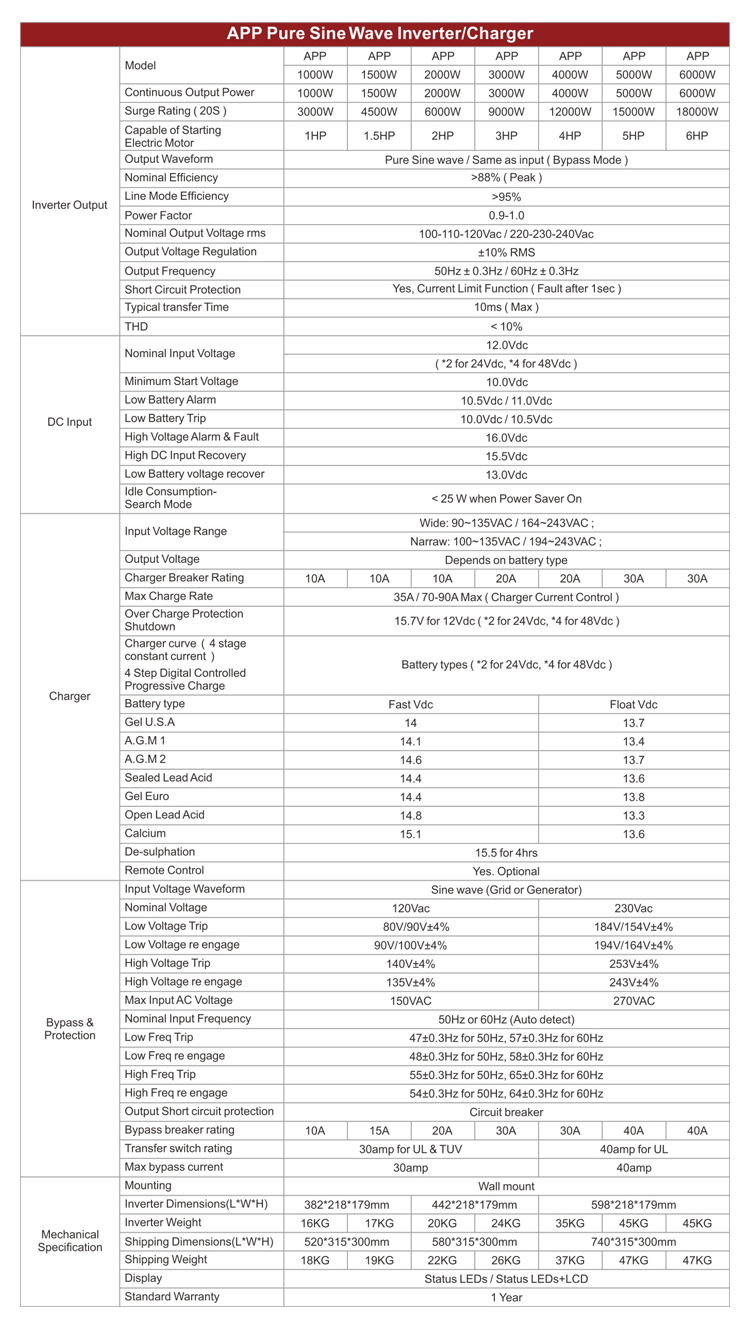

Specifications

Additional Information

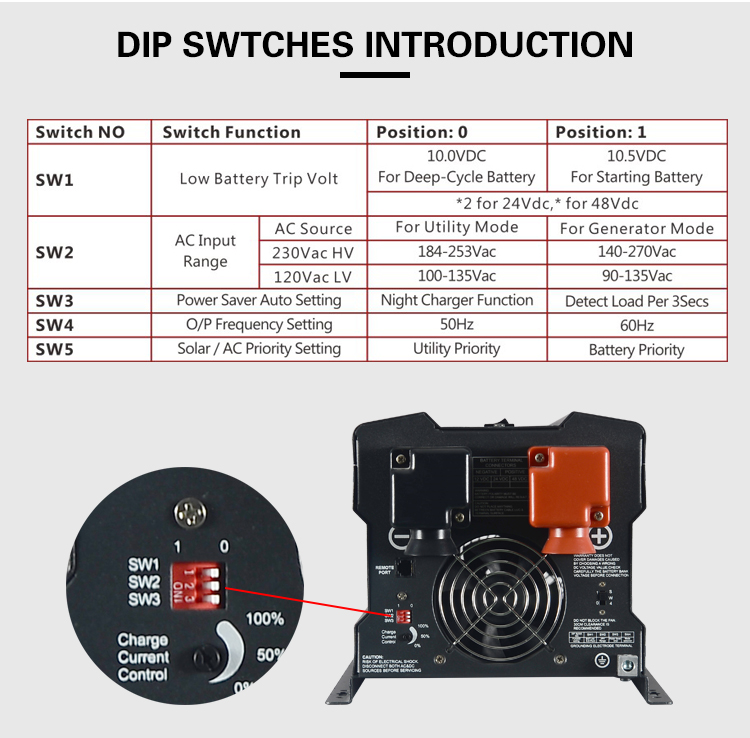

Low Battery Trip Voltage: Default set at 10.0VDC, customizable to 10.5VDC.

AC Input Range: Customizable from 184-253VAC to 140-270VAC, depending on load types.

Frequency Adjustment: Factory default configuration for different models, easily adjustable with appropriate frequency input.
