Description

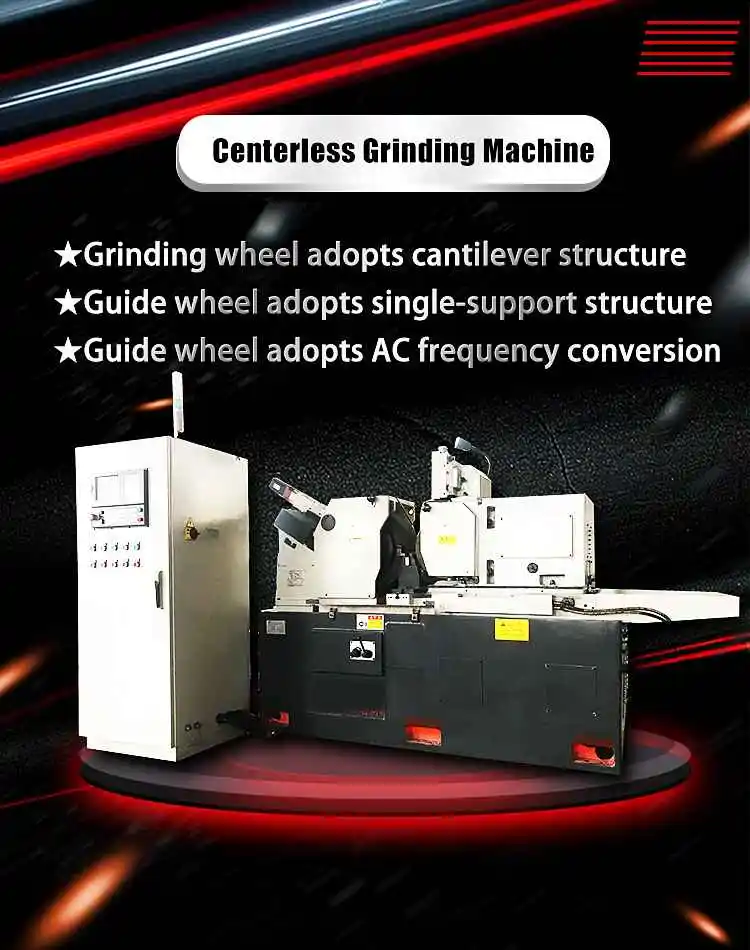

The Low Noise Level MK10100-3A Tools CNC Centerless Grinding Machine is an advanced solution designed for precision grinding operations with a focus on minimizing noise levels. This machine features a cutting-edge cantilever structure for the grinding wheel and utilizes multi-chip long bearing dynamic pressure oil film bearings for the spindle. The guide wheel employs a single-support structure, ensuring stability and efficiency. With an independent oil tank for spindle lubrication and an optional thermostatic apparatus, this machine ensures optimal performance and longevity.

The machine’s innovative feeding system incorporates a Siemens servo motor which drives a ball screw, allowing for a minimum feeding rate of 0.001mm. Both the feeding and reciprocating movements of the grinding wheel dresser are similarly driven by Siemens servo motors, providing high precision and reliability. Additionally, an optional magnetic and paper roll filter can be integrated into the cooling system for enhanced efficiency.

Specifications

Additional Information

For optimal usage, ensure regular maintenance of the machine and check lubrication levels frequently. The machine also features a cooling system with a pump flow of 100L/min and hydraulic pump flow of 25L/min. With a robust grinding wheel motor power of 18.5kw and guide wheel motor power of 2.2kw, this CNC grinding machine is built for heavy-duty applications while maintaining operational efficiency.
