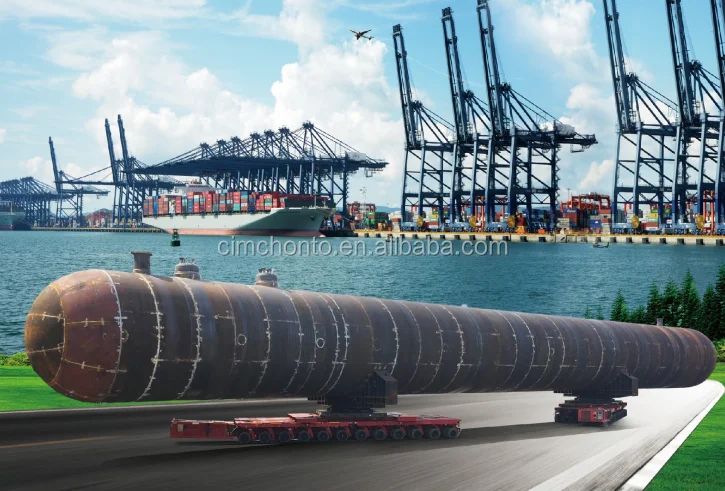

LPG Mounded Tank
Inquire NowDescription
The LPG Mounded Tank is engineered for the safe and efficient storage of liquefied petroleum gas (LPG). Designed in accordance with ASME BPVC VIII-1/VIII-2 standards, this tank offers a robust construction suitable for capacities ranging from 5 to 5000 m³. Made from high-quality SA-516 and SA-537 CL1 materials, the tank is built to withstand high pressures and provide superior durability. Its innovative design eliminates the need for saddles in large tanks, ensuring stability and safety during operation.
Specifications
Attribute | Value |
---|---|
Design Code | ASME BPVC VIII-1/VIII-2 |
Vessel Capacity | 5~5000 m³ |
Vessel Material | SA-516, SA-537 CL1 |
Design Pressure | 1.8 MPa |
Working Pressure | 1.18 MPa |
Design Temperature | 50℃ |
Corrosion Allowance | Inner 3mm / Outside 2mm |
Thickness (mm) | Shell 34mm / Head 20mm |
Filling Rate | 0.85 |
MDMT at MAWP | -15℃ at 1.8 MPa |
Additional Information
This LPG Mounded Tank is designed for optimal performance, with specific gravity measuring 0.54 at 15℃, and it is suitable for various LPG applications. The tank is also capable of withstanding seismic and wind loads, although these factors are not considered in its current design specifications. For maintenance, it is essential to regularly check for corrosion and ensure that the tank is operating within the specified pressure limits.
