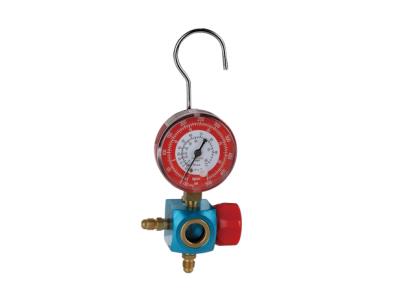

LX-1006C AC Manifold gauge single valve with sightglass high pressure
Inquire NowDescription
The LX-1006C AC Manifold Gauge is designed for high-pressure applications, featuring a robust aluminum alloy valve body that ensures durability and reliability. Its gentle and comfortable hand knob structure allows for easy operation, making it an essential tool for HVAC professionals. With a built-in sight glass, this gauge provides clear visibility for monitoring refrigerant flow, essential for efficient system performance.
This manifold gauge includes a shut-off ball valve for effective control, a scale marked in bar, psi, and Celsius for versatile readings, and an 80mm Bourdon gauge for precise pressure measurement. Additionally, it is equipped with a standard 3/8″ SAE connector, ensuring compatibility with various systems. The gauge’s class 1.6 rating guarantees minimal pulse, enhancing the accuracy of your readings.
Specifications
| Feature | Details |
|---|---|
| Material | Aluminum Alloy |
| Valve Type | Shut Off Ball Valve |
| Scale | Bar / psi / ℃ |
| Bourdon Gauge Size | 80mm |
| Connector Size | 3/8″ SAE |
| Gauge Class | 1.6 Pulse-Free |
Additional Information
- Designed for high-pressure applications
- Gentle hand knob structure for user comfort
- Clear sight glass for monitoring refrigerant flow
